Lexus GX470 (2UZ-FE) Oil Pan 3D Scan STL
$40.00

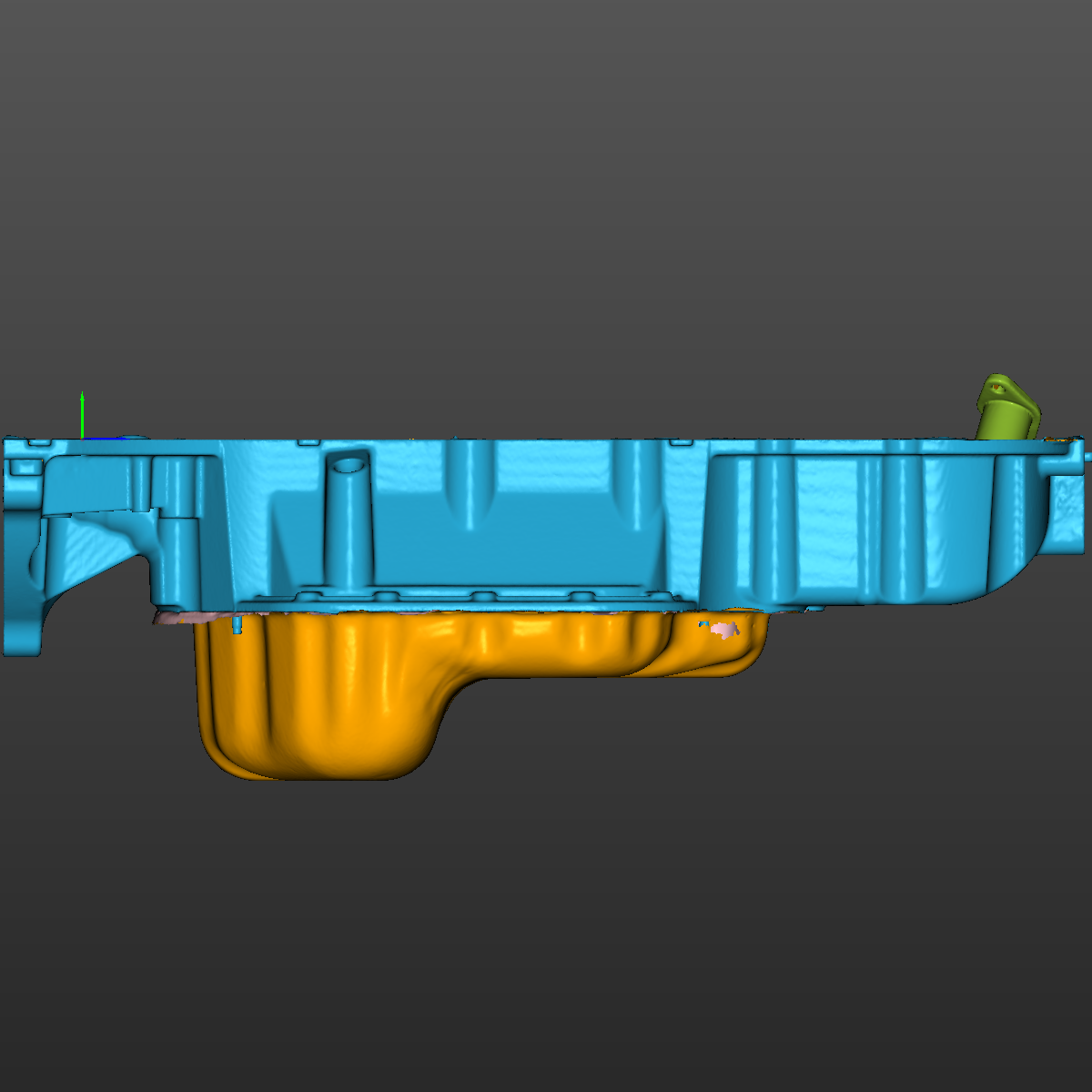

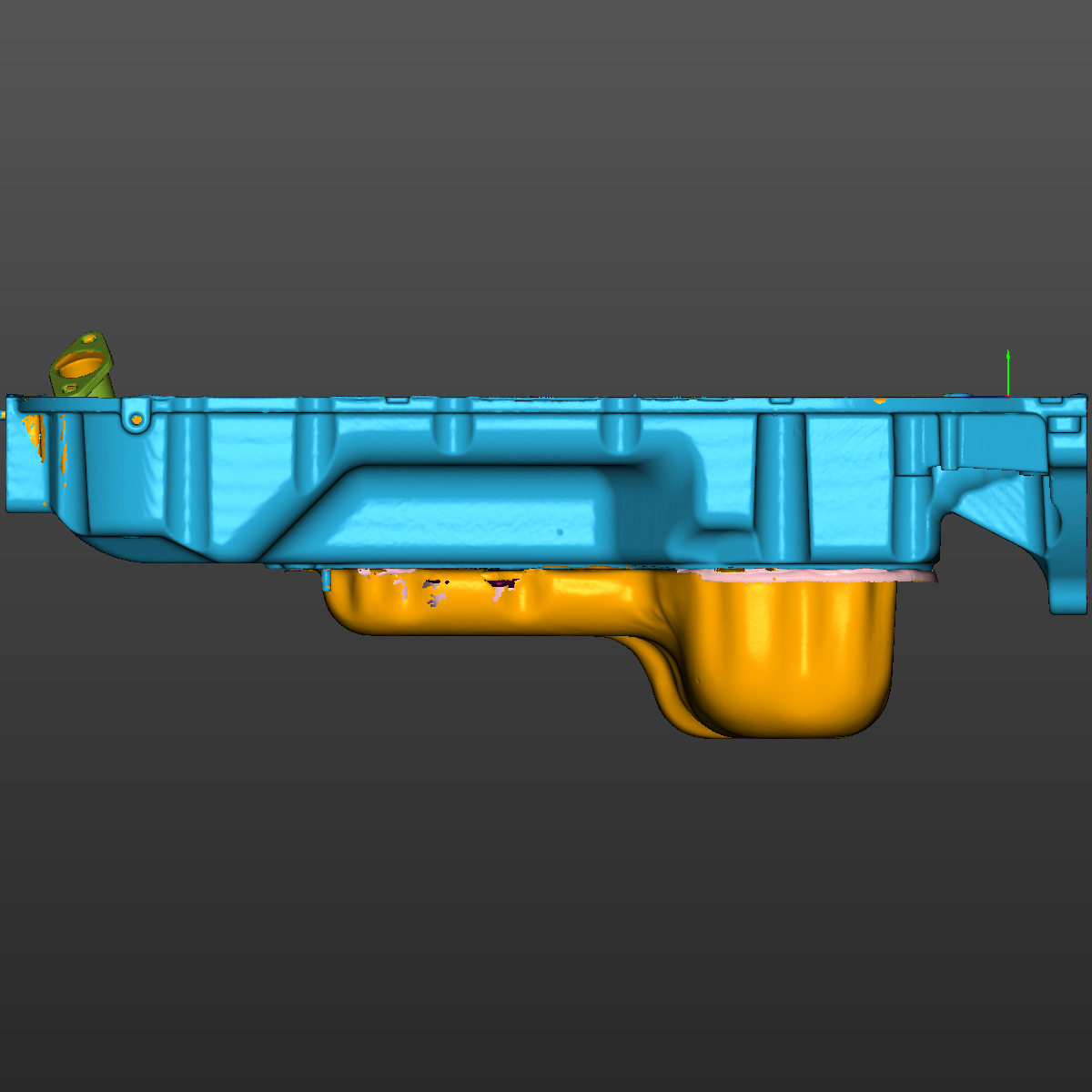

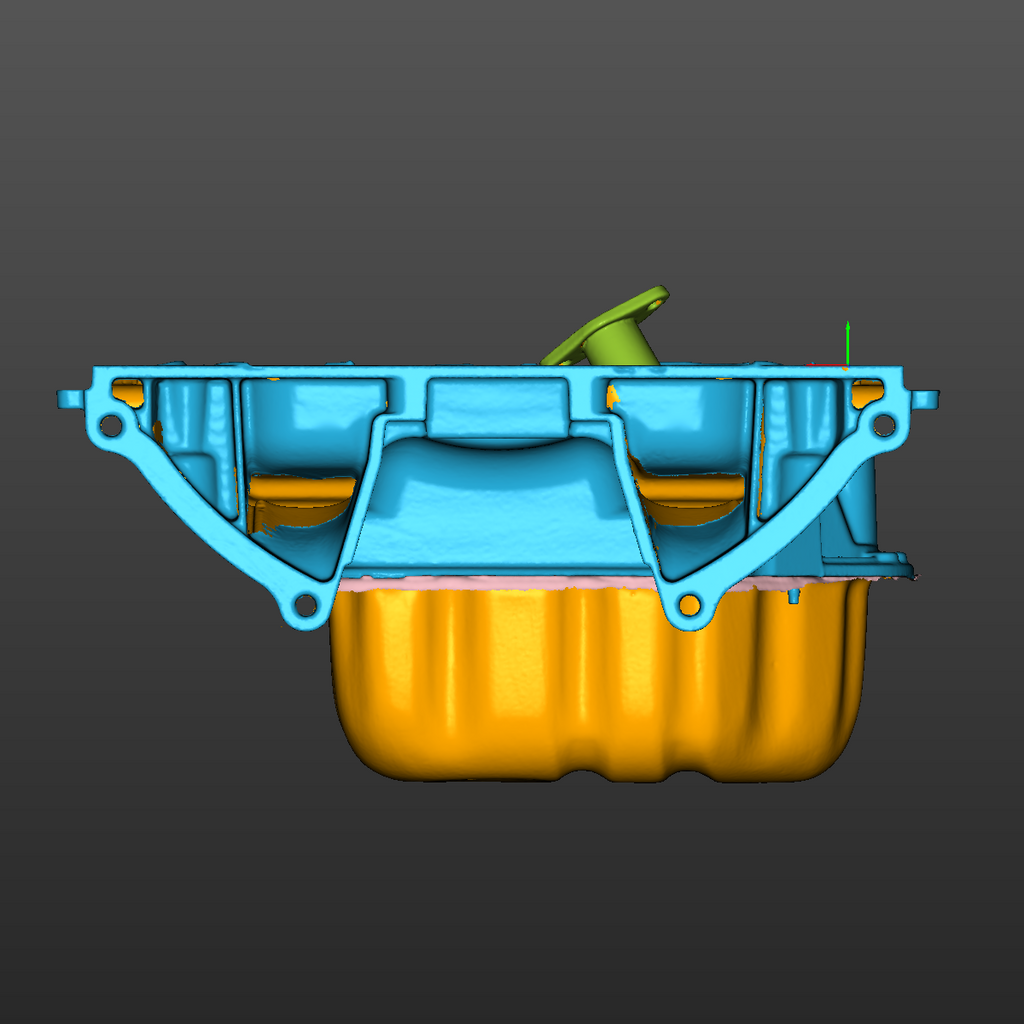

High-accuracy 3D scan of a real OEM Lexus GX470 (2UZ-FE) Oil Pan - created for engineers, fabricators, and enthusiasts who need accurate real-world geometry.
Ideal for:
- Reverse engineering
- Custom oil system design
- Custom fabrication and fitment checks
What’s Included

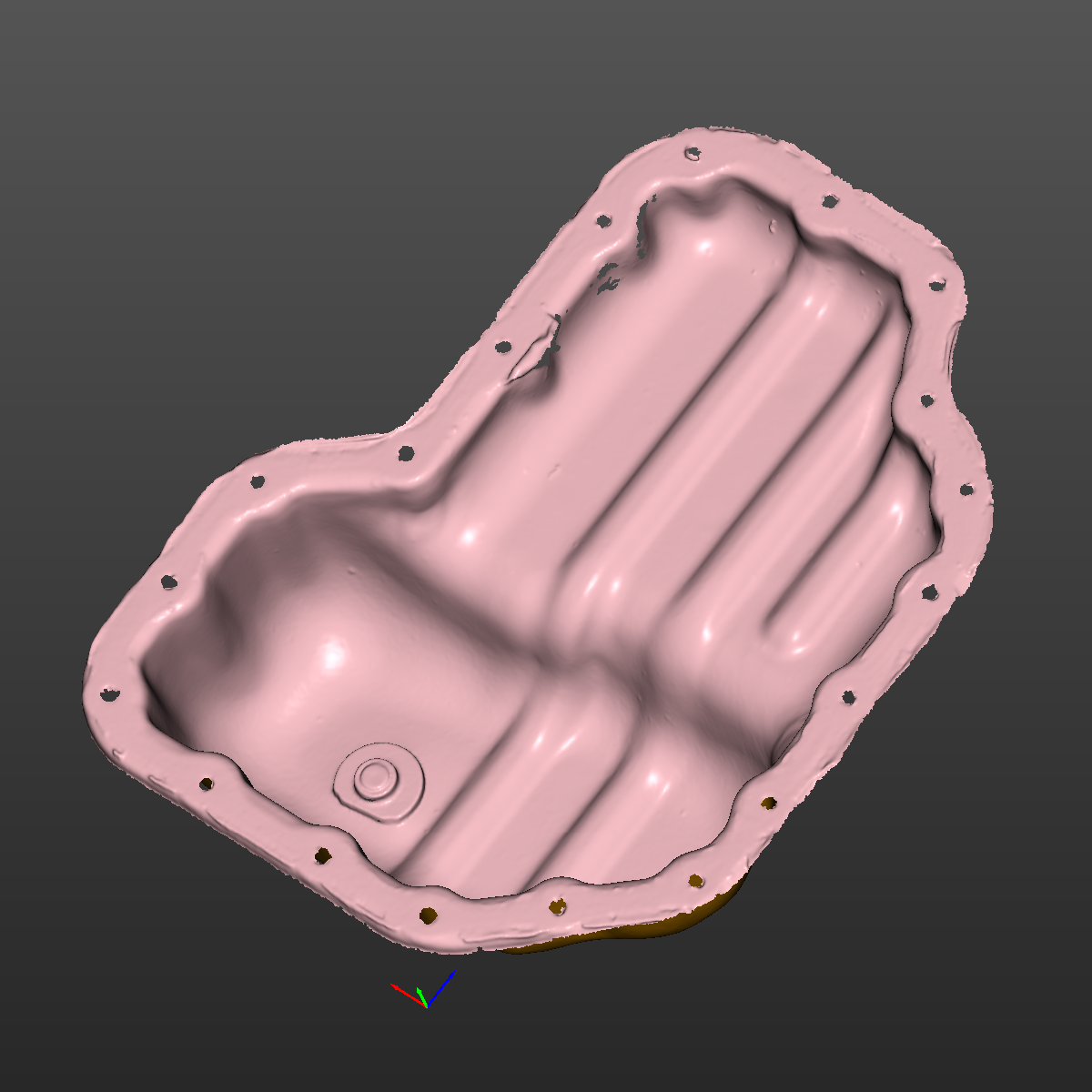

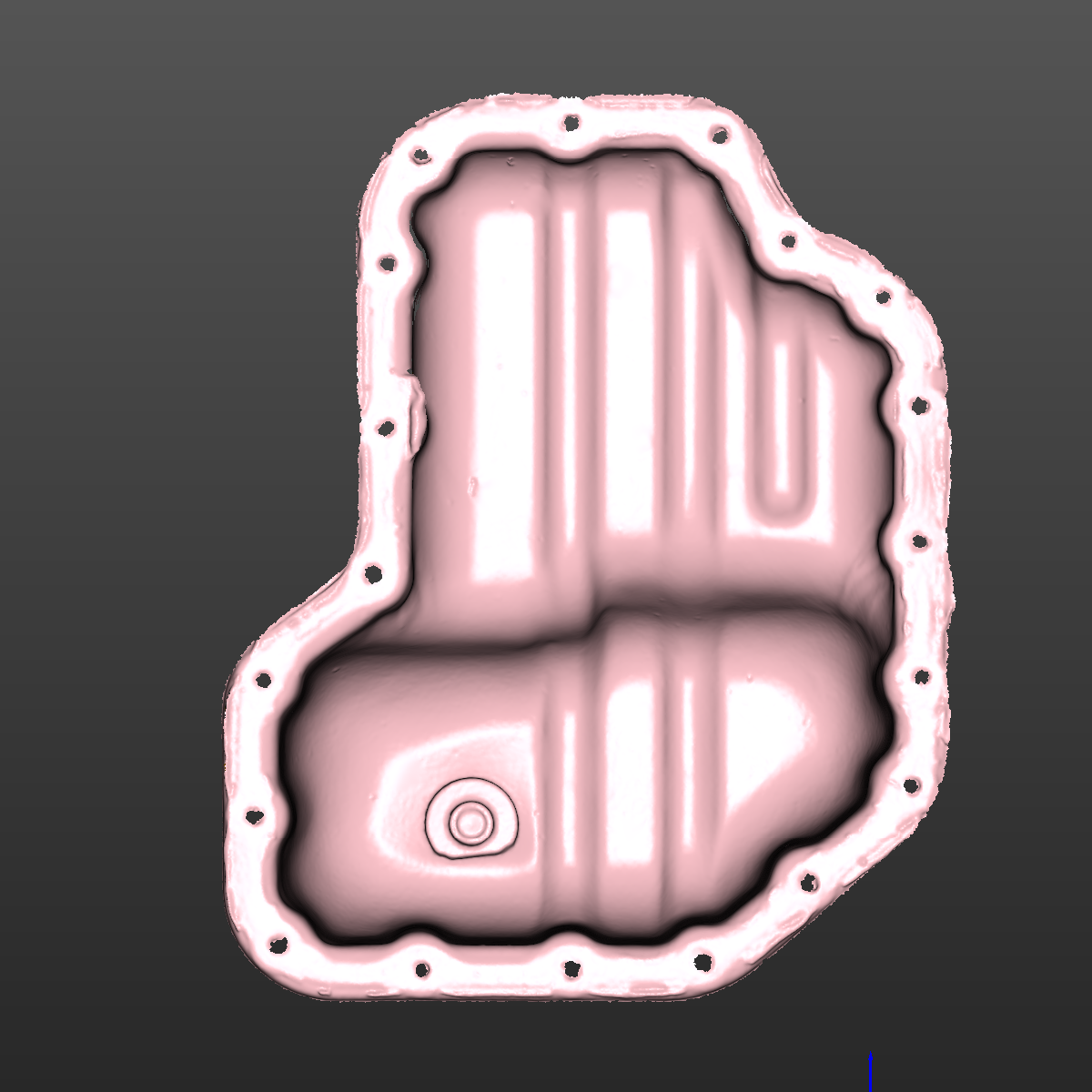

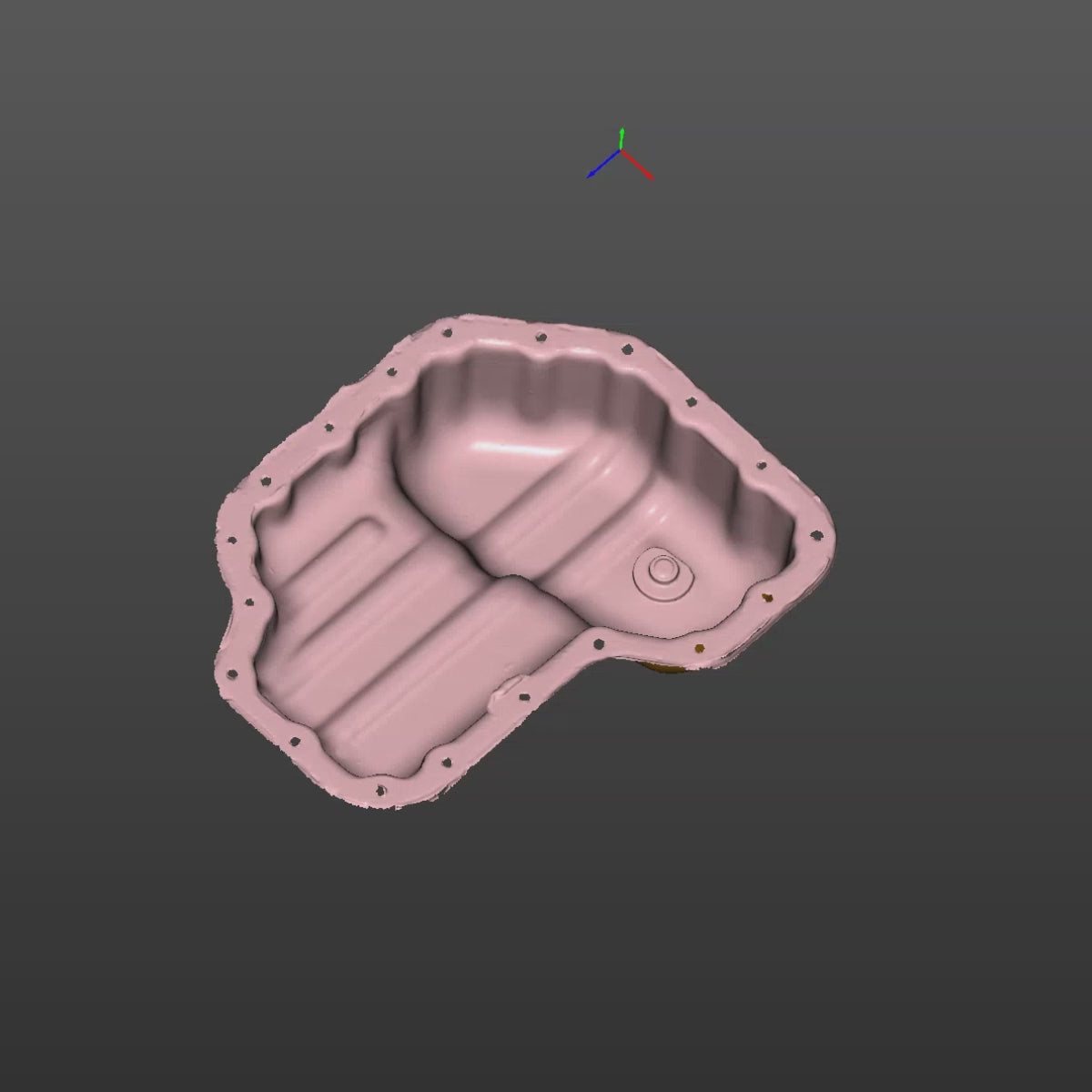

- 3D scan–based geometry of an original Lower Oil Pan

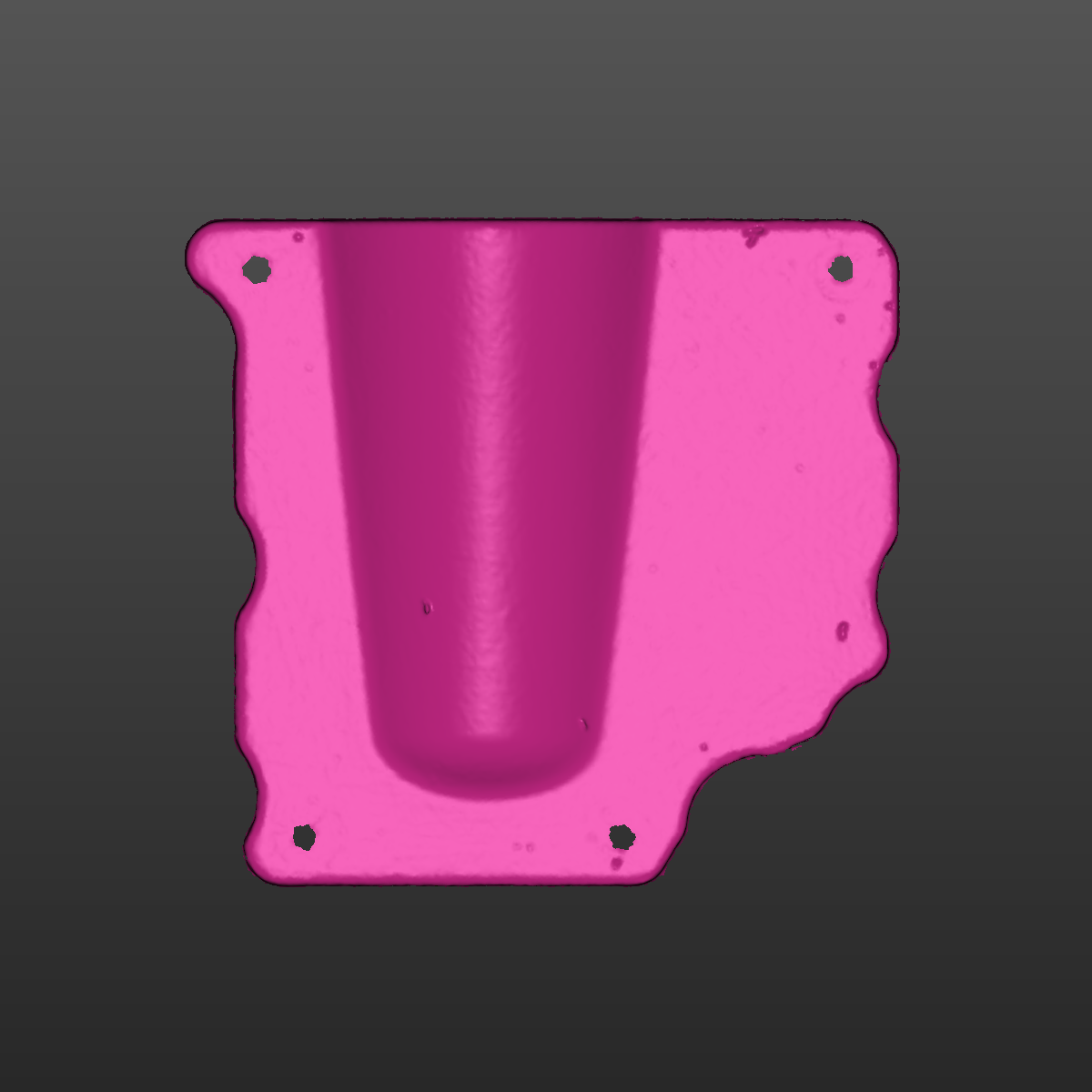

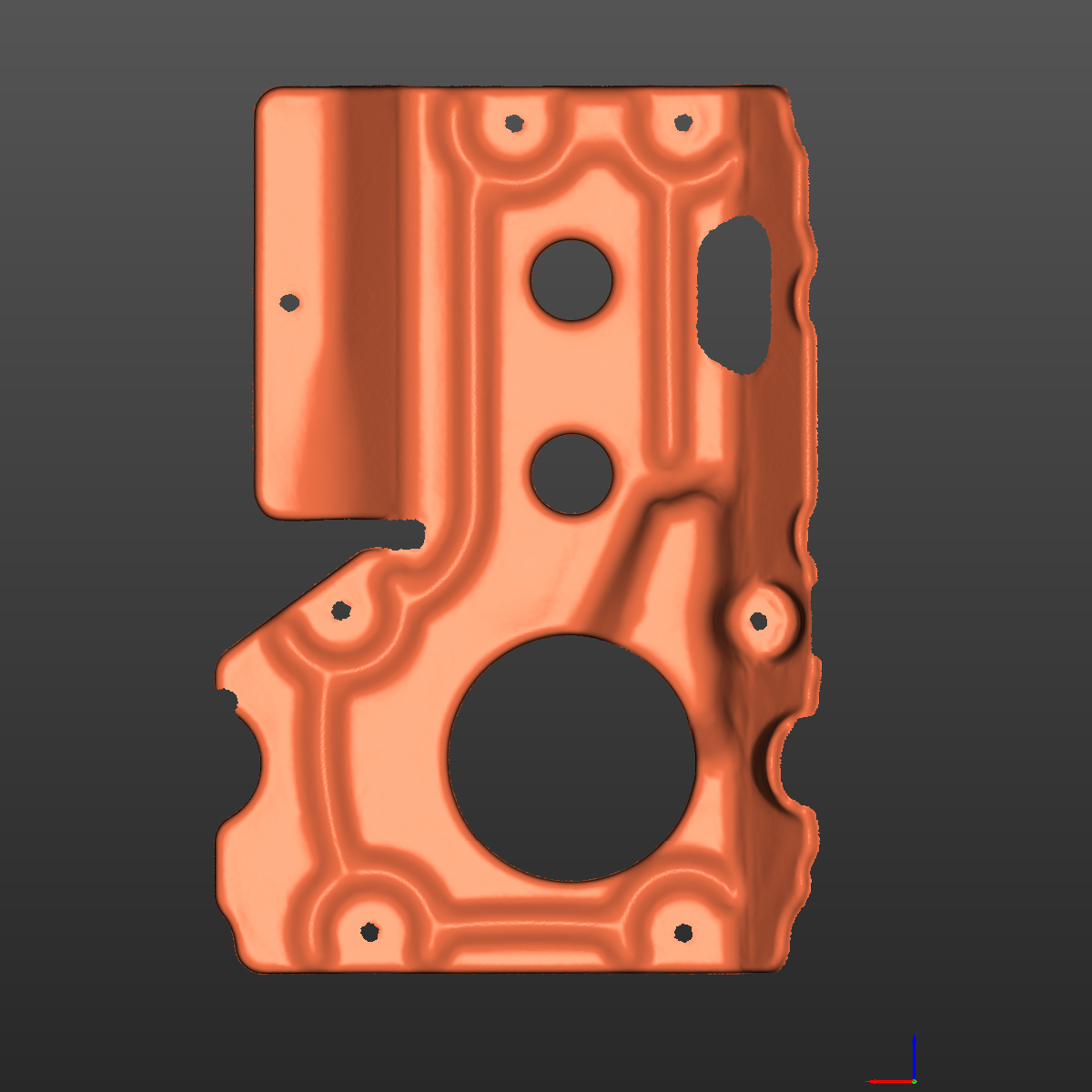

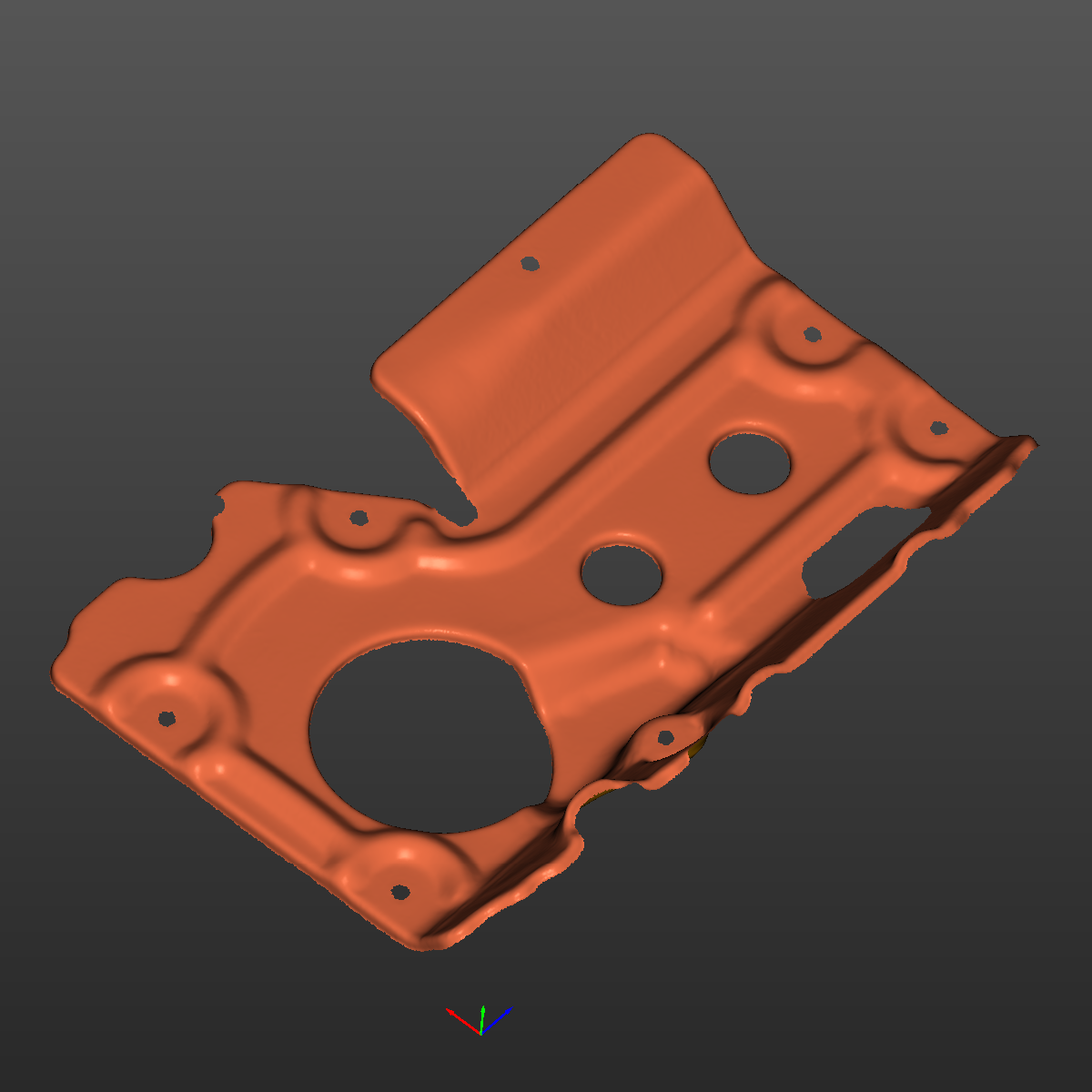

- 3D scan–based geometry of an original Oil deflector plate

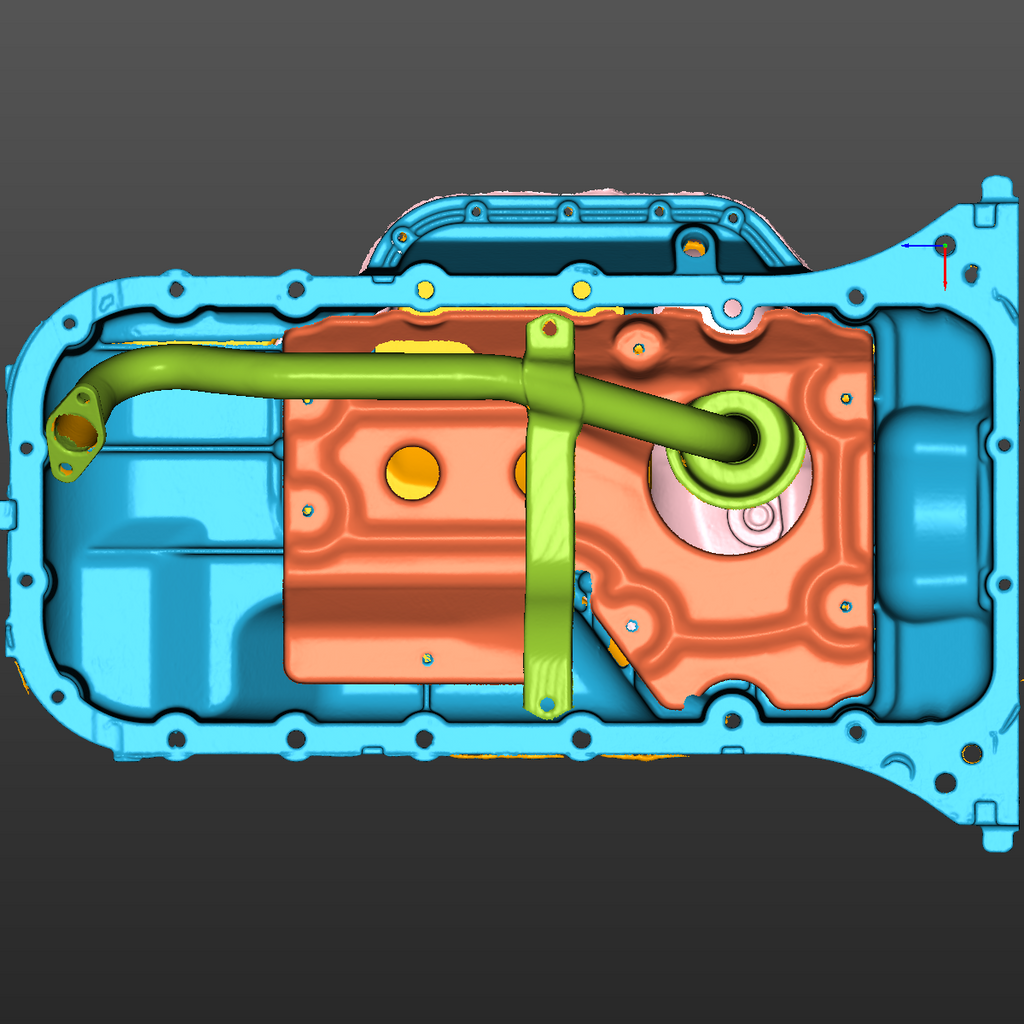

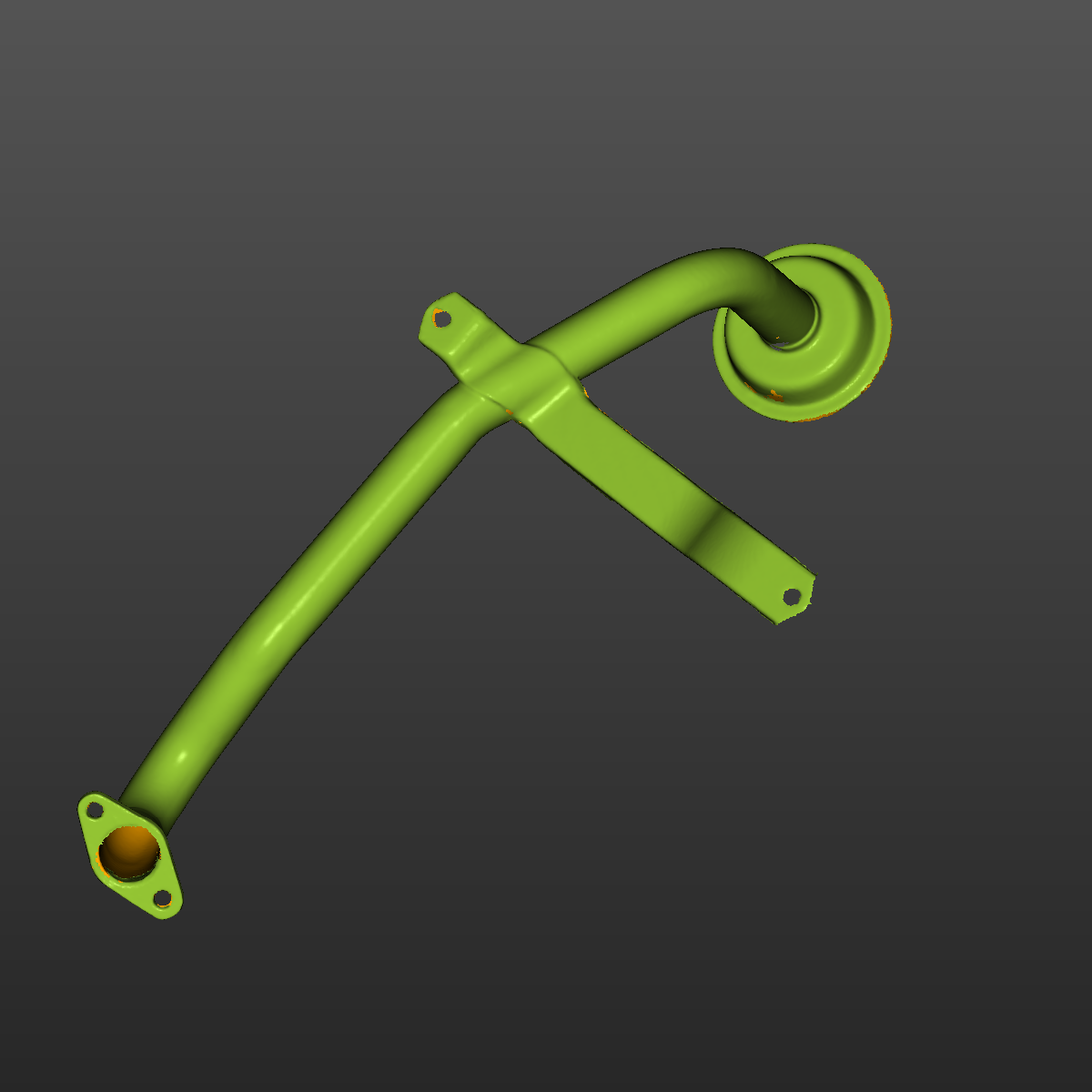

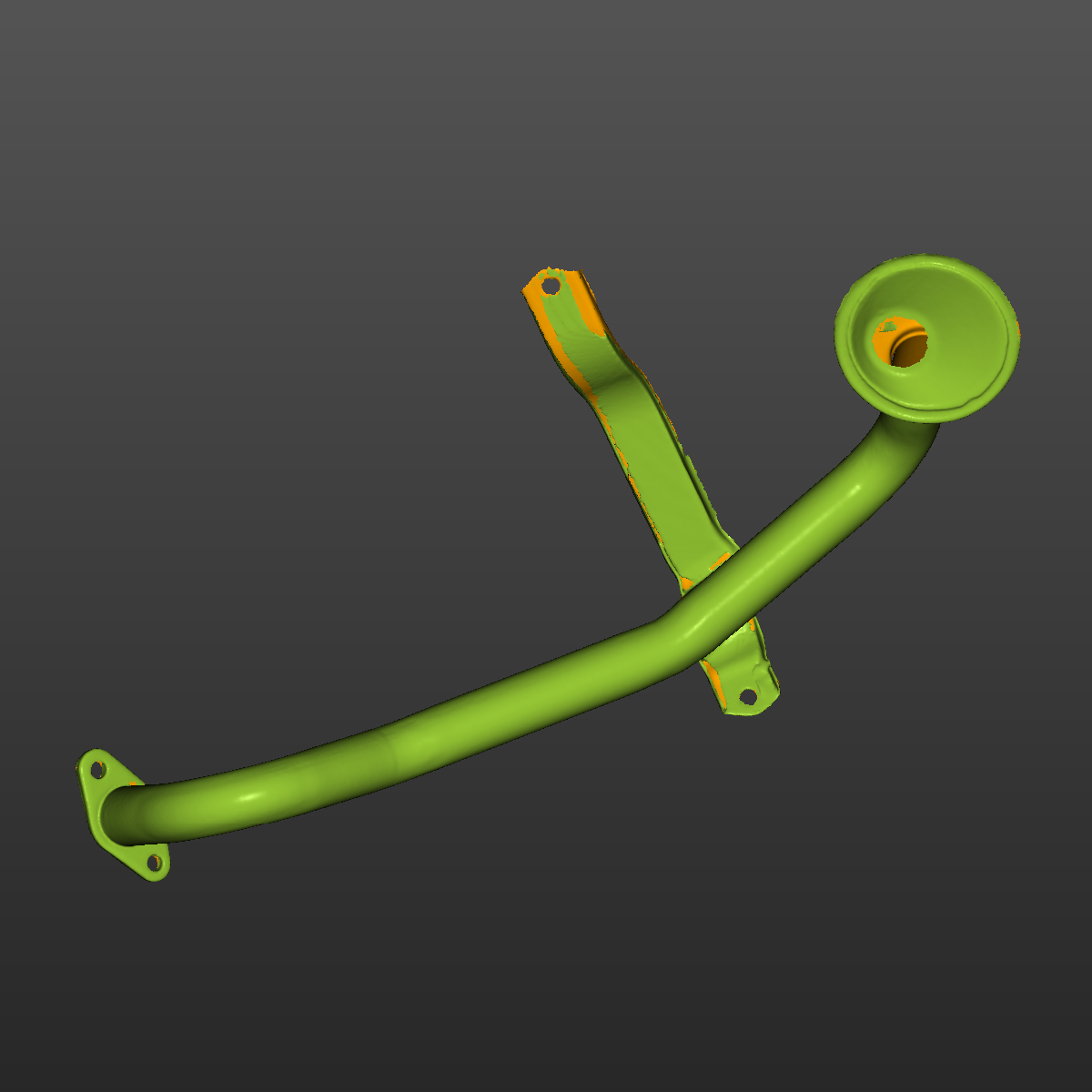

- 3D scan–based geometry of an original Oil Pickup

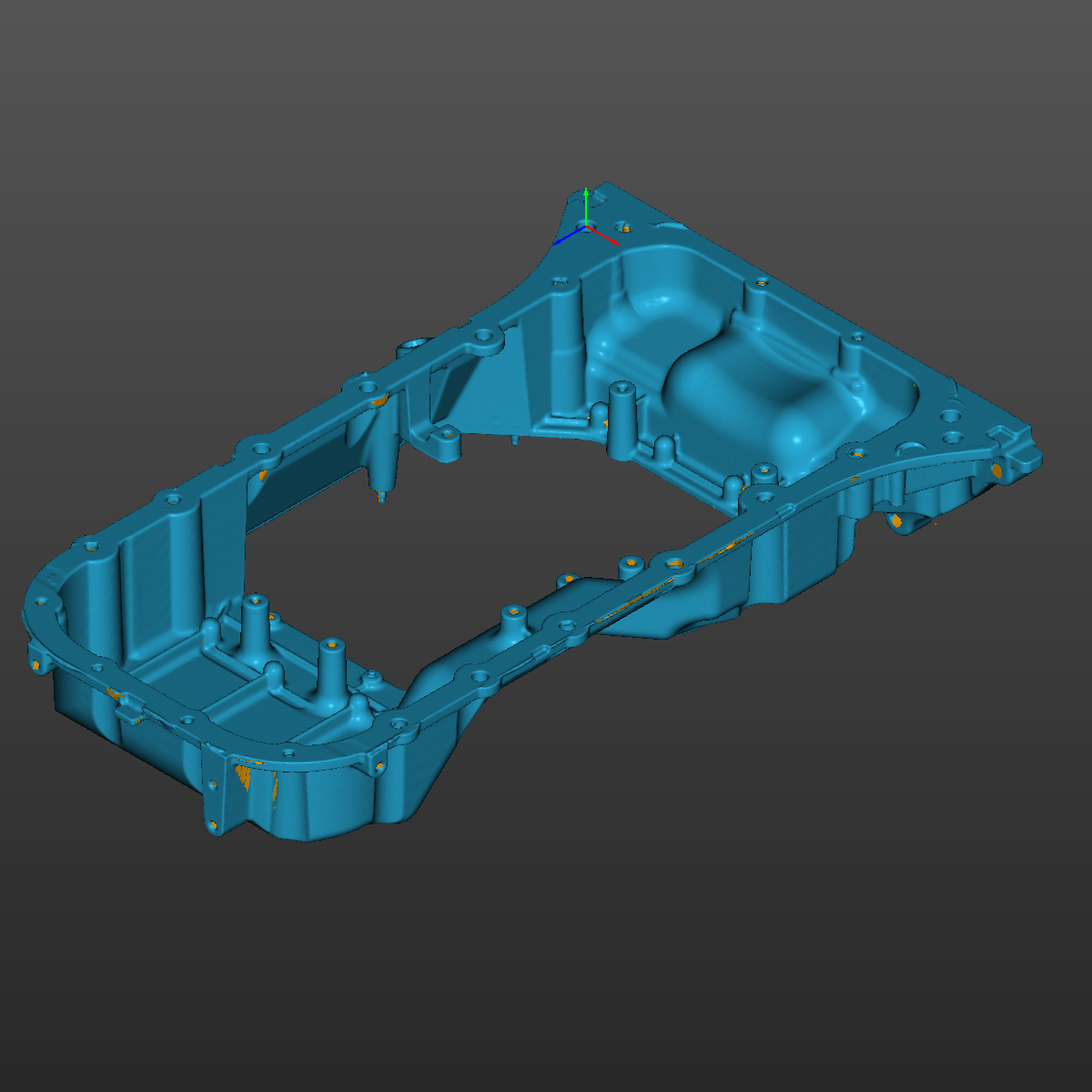

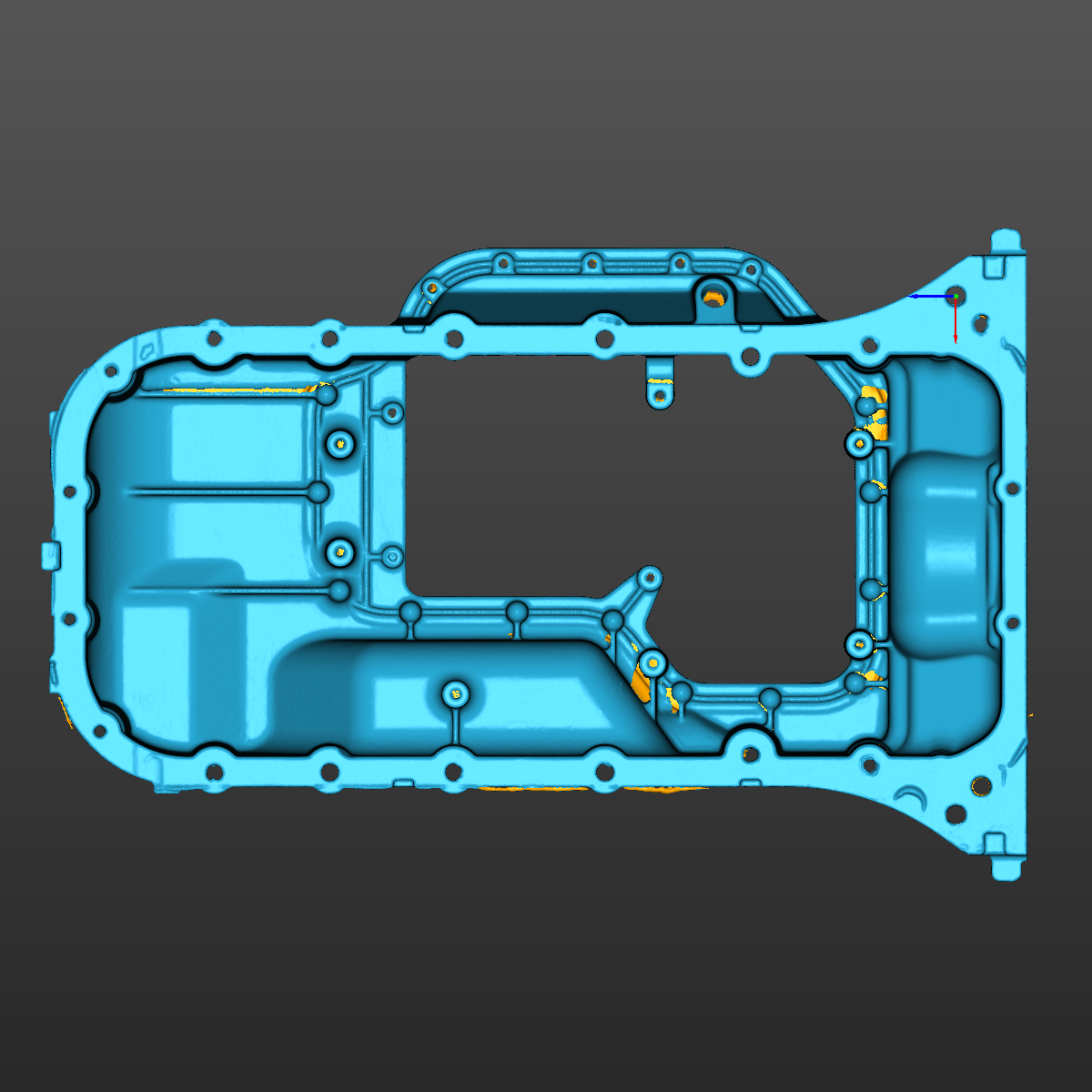

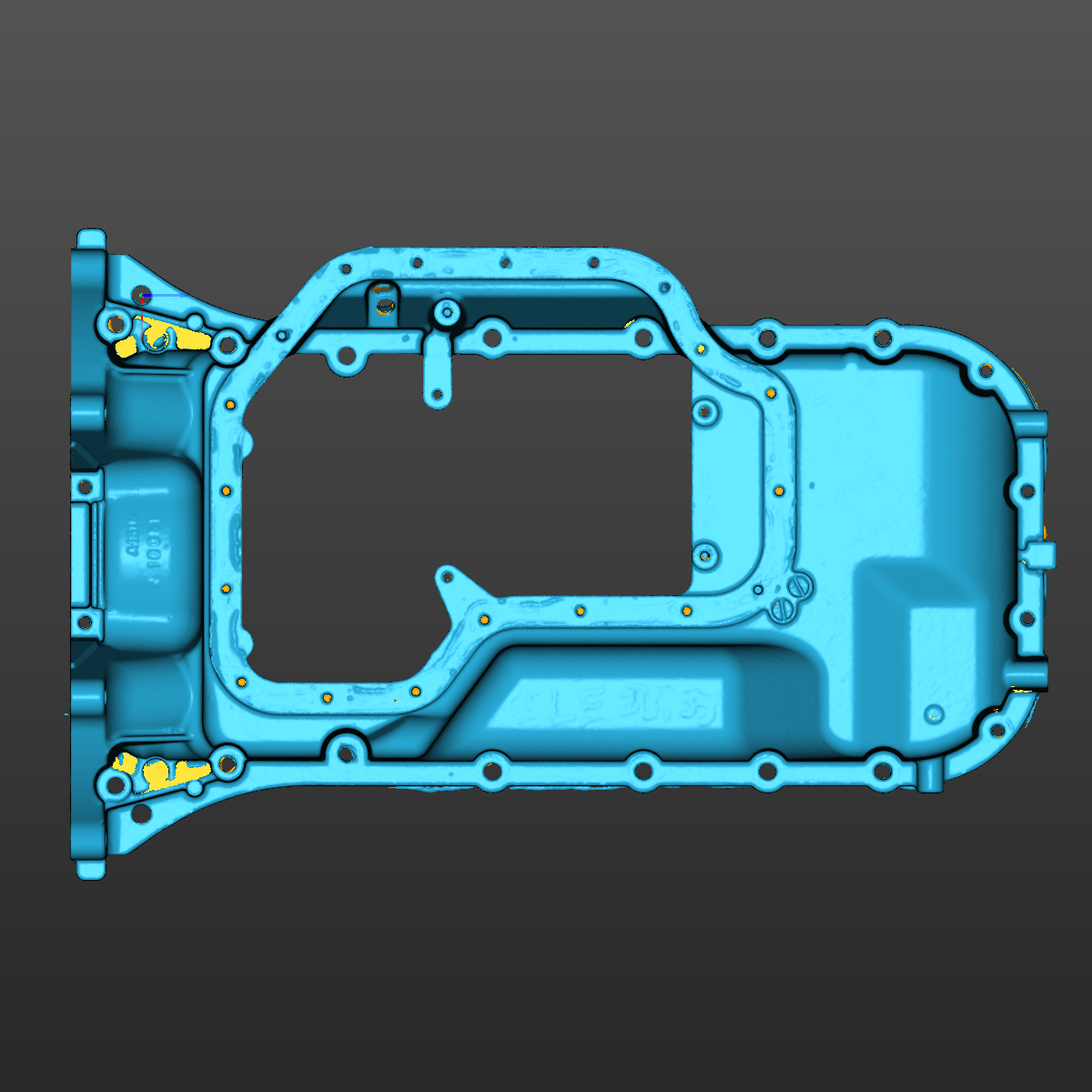

- 3D scan–based geometry of an original Upper Oil Pan

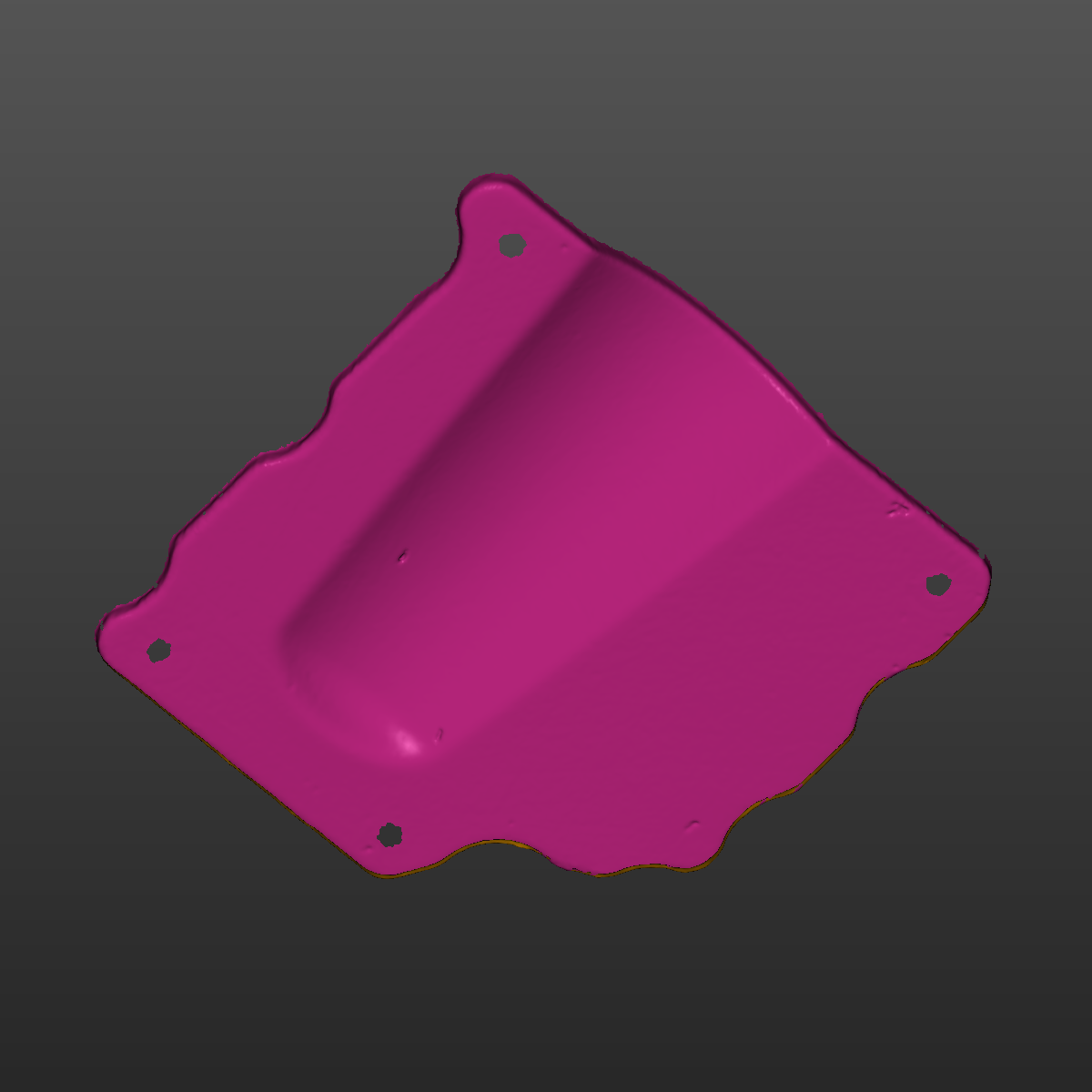

- 3D scan–based geometry of an original windage tray

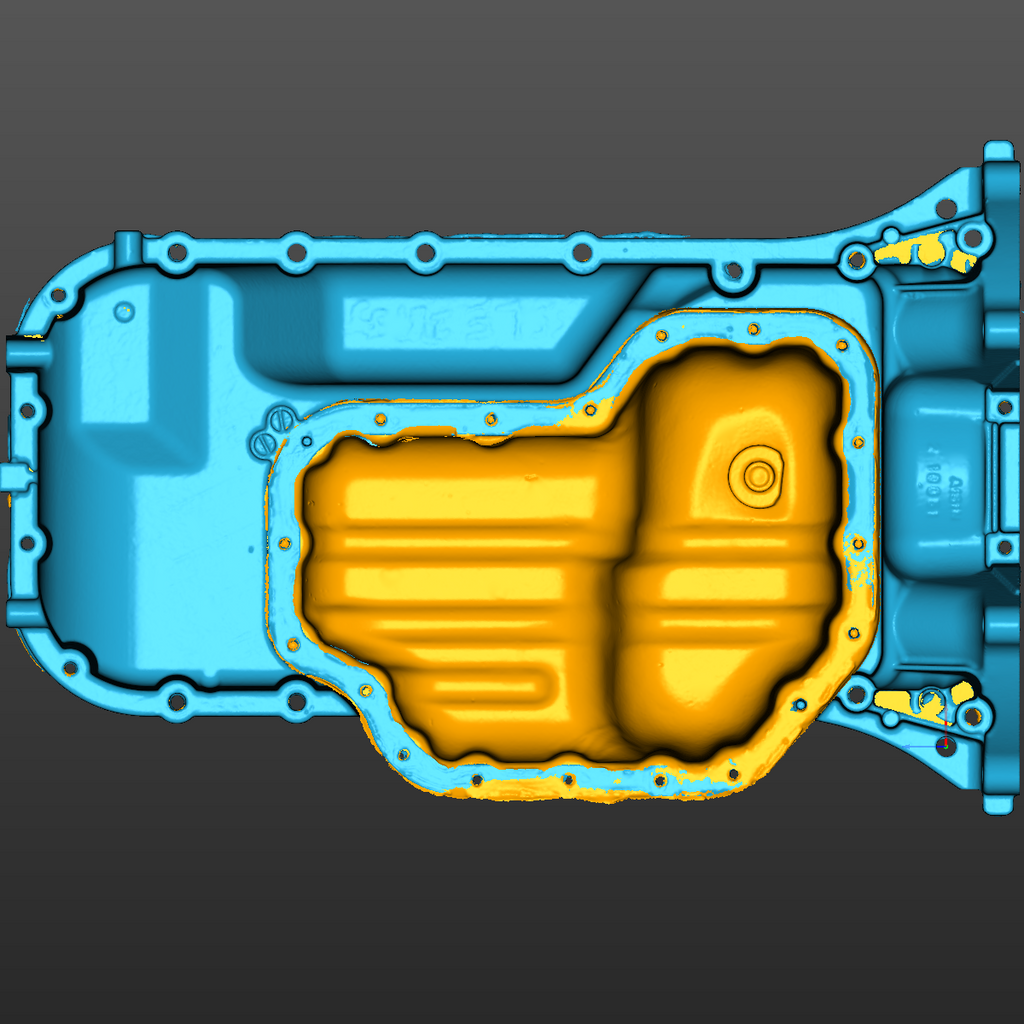

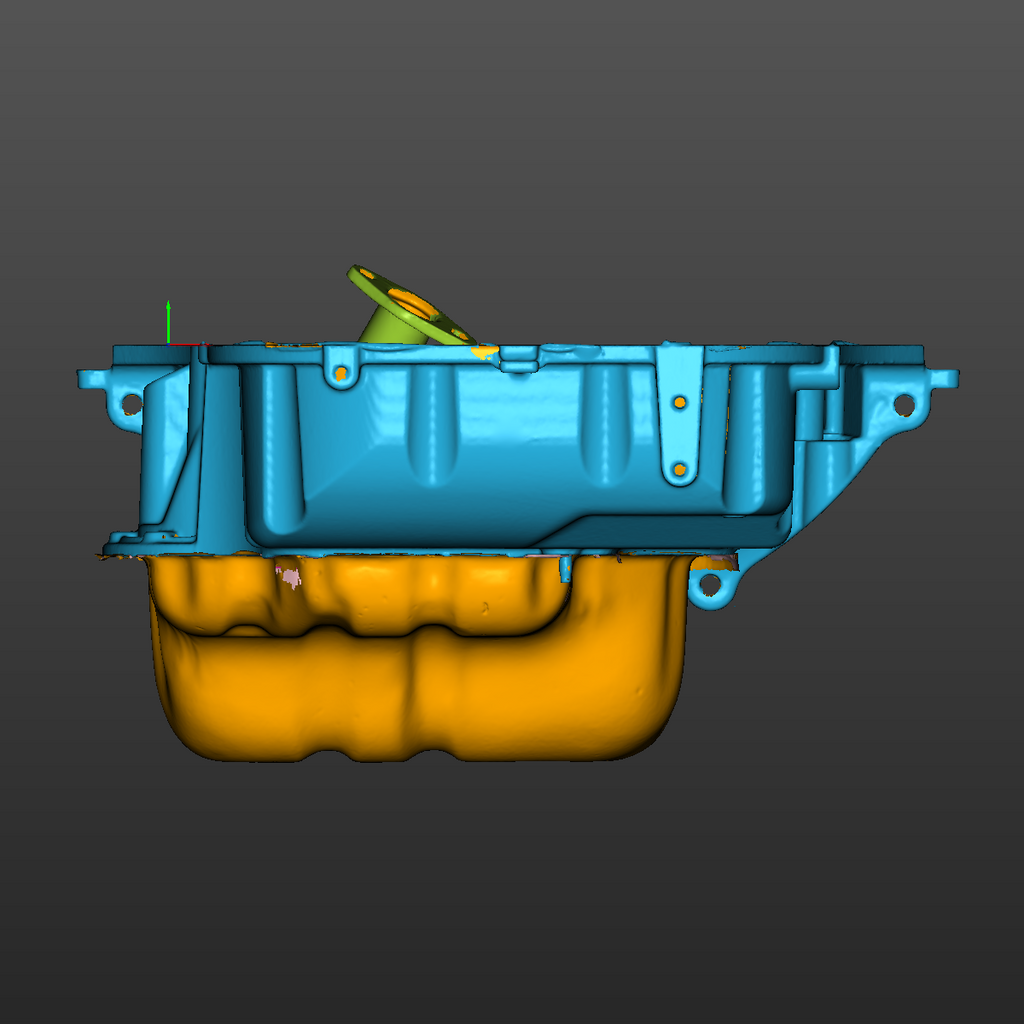

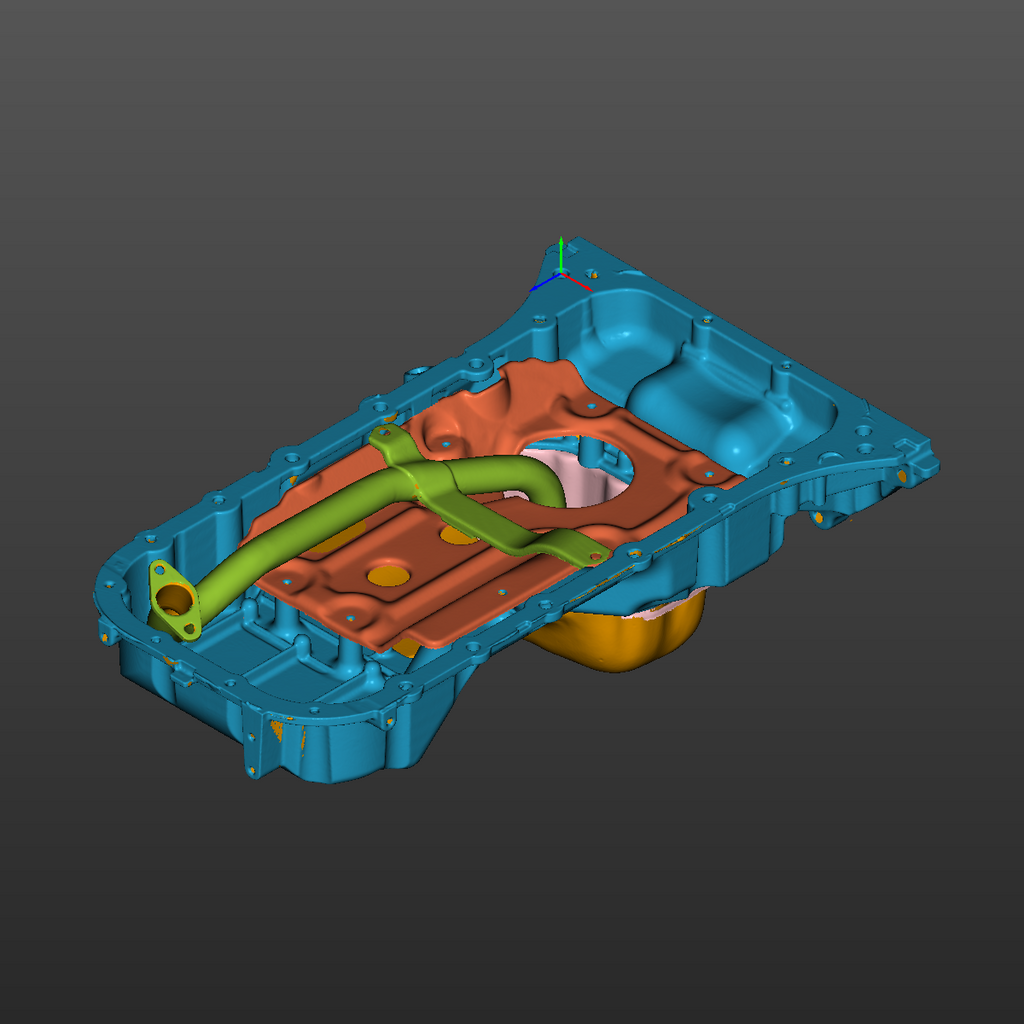

- The package include as individual scans of each separate part. All scans are positioned relative to each other for convenient modeling.
- Cleaned and aligned model
Accuracy & Notes
- Scan accuracy: approximately ±0.06 mm
- Minor surface noise removed
- Model represents the part as-scanned
- This is scan data, not a redesigned CAD model
- File formats: STL
License & Usage Terms:
This 3D model is provided for personal and commercial use by the original purchaser only.
Resale, redistribution, sharing, sublicensing, or transferring this file (or any derivative of it) in digital form is strictly prohibited.
You may use this model for design, fabrication, and manufacturing purposes, but you may not sell, give away, or upload the digital files or modified versions of them.
