Honda K-series oil pan (K20,K24 Non-balance shafts) 3D Scan STL

High-accuracy 3D scan of a real OEM Honda K-series oil pan (K20,K24 Non-balance shafts) - created for engineers, fabricators, and enthusiasts who need accurate real-world geometry.

Ideal for:
- Reverse engineering
- Custom oil system design
- Custom fabrication and fitment checks

What’s Included

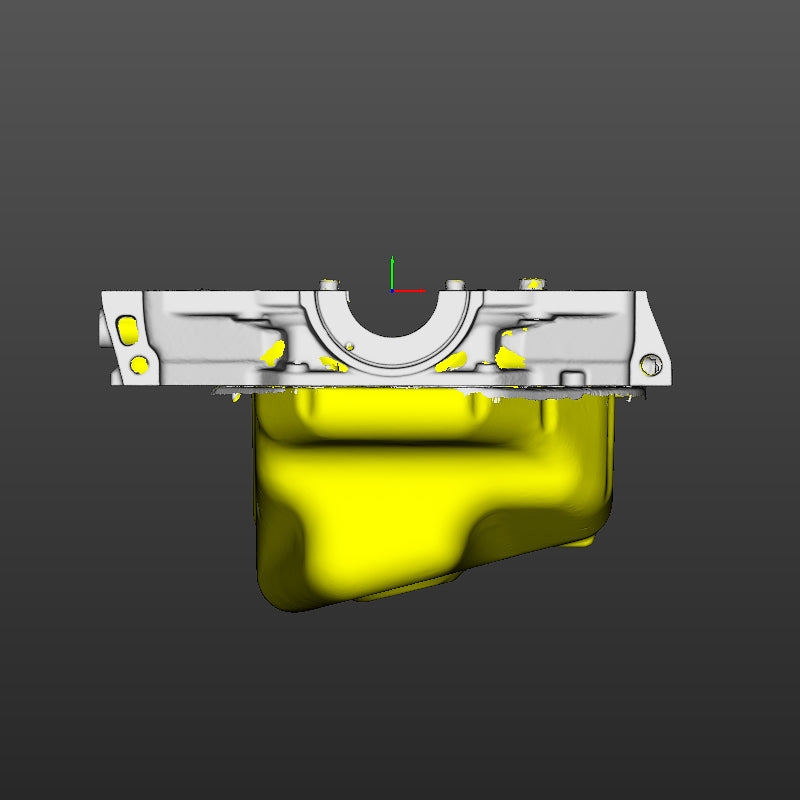

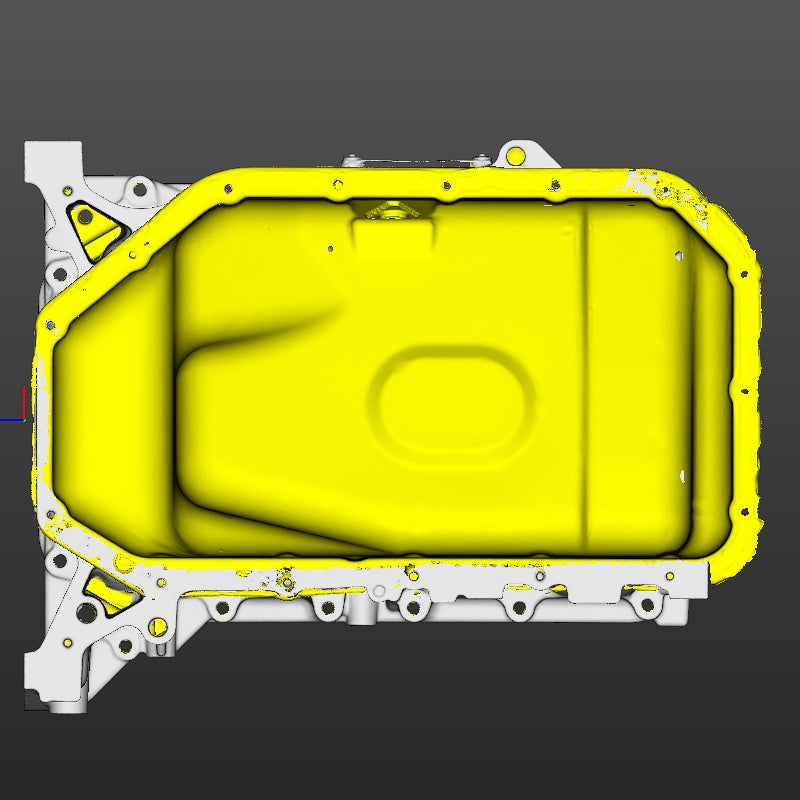

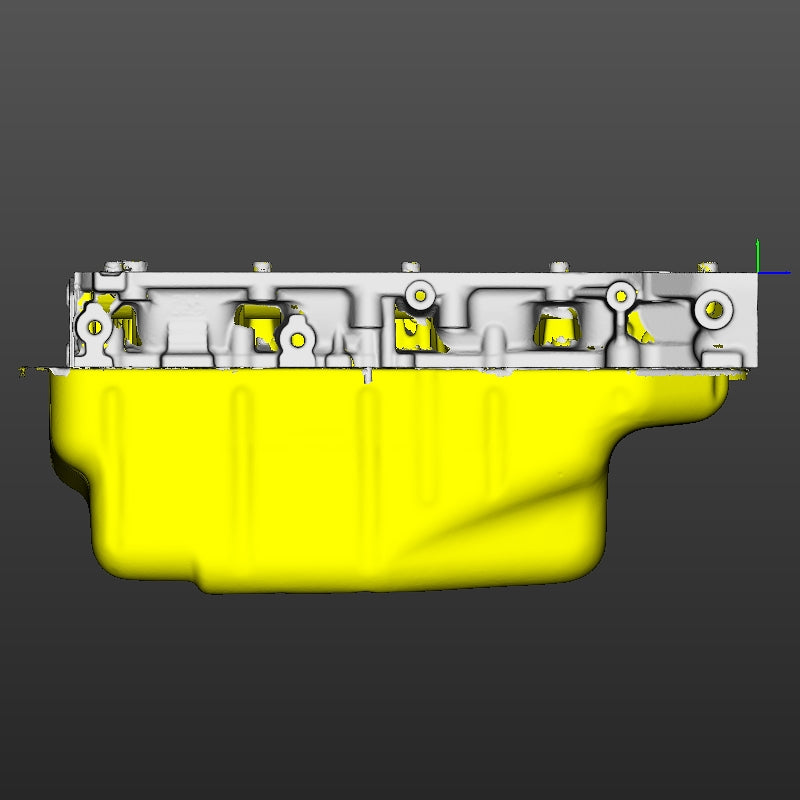

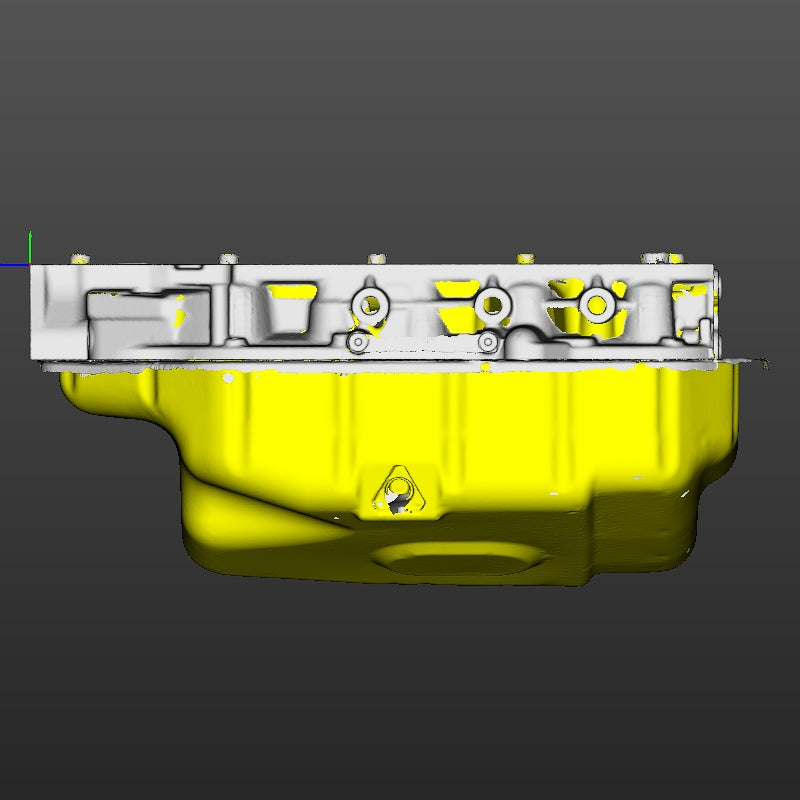

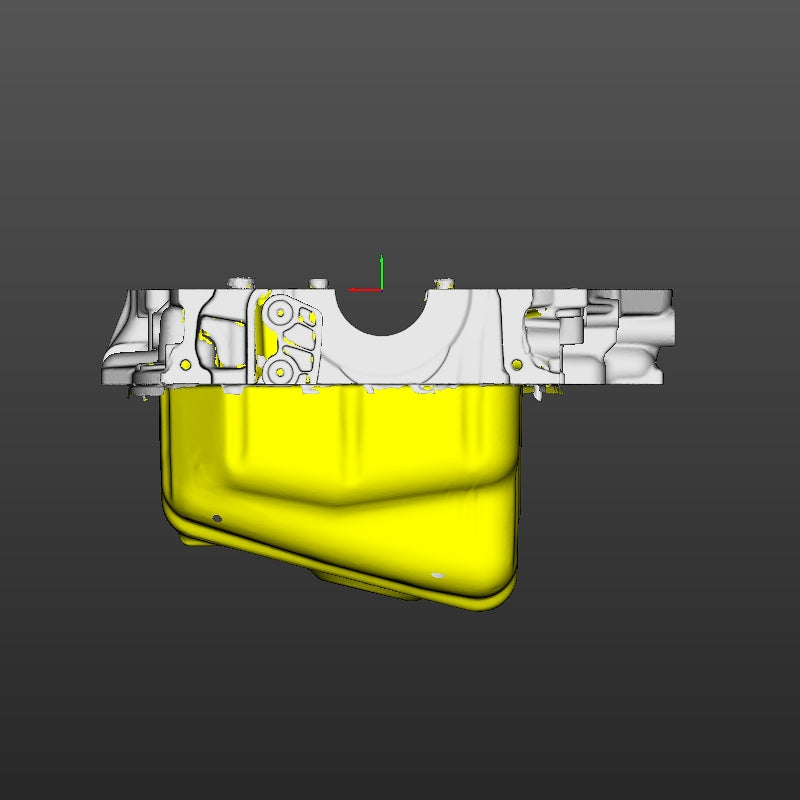

- 3D scan–based geometry of an original OEM Honda K-series (K20,K24 Non-balance shafts) oil pan

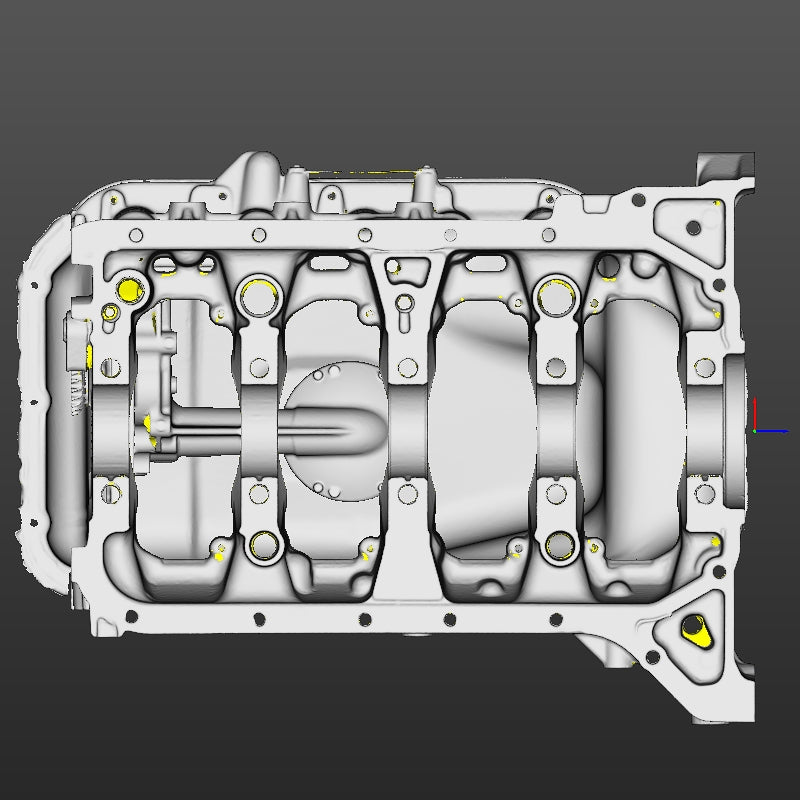

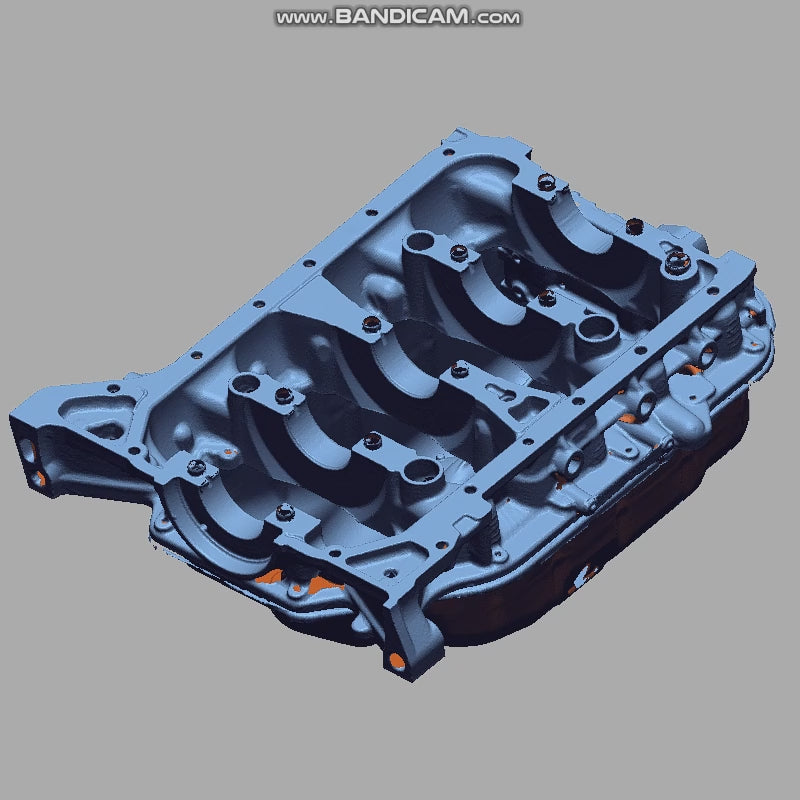

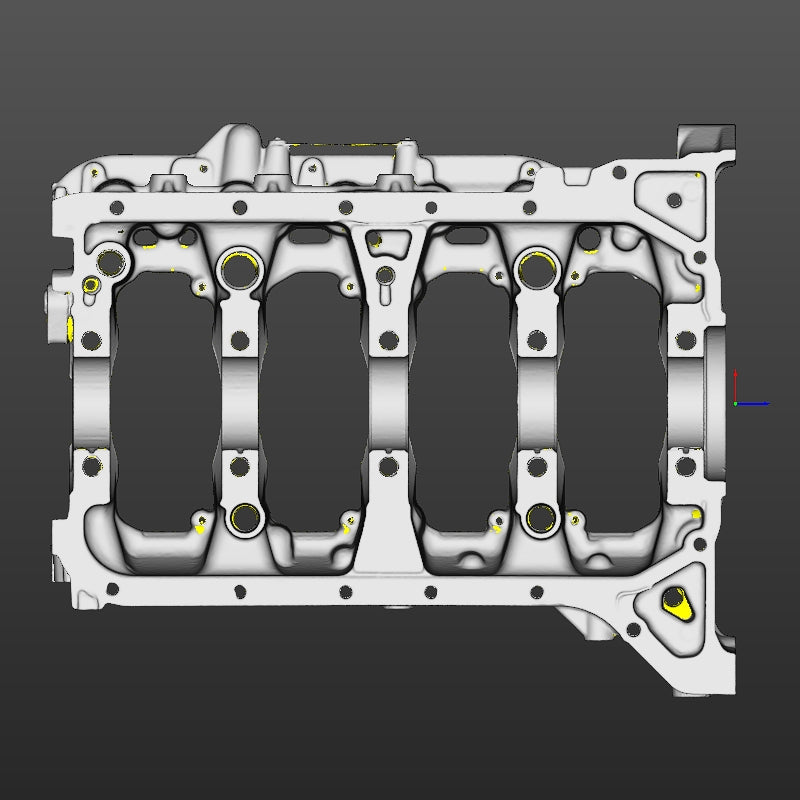

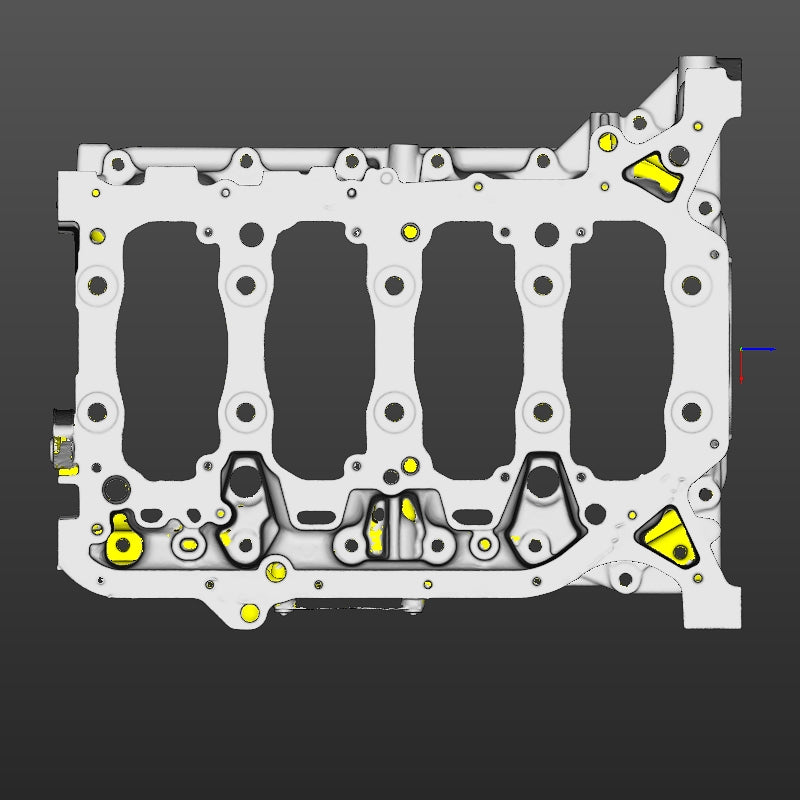

- 3D scan–based geometry of an original OEM Honda K-series (K20,K24 Non-balance shafts) crankcase

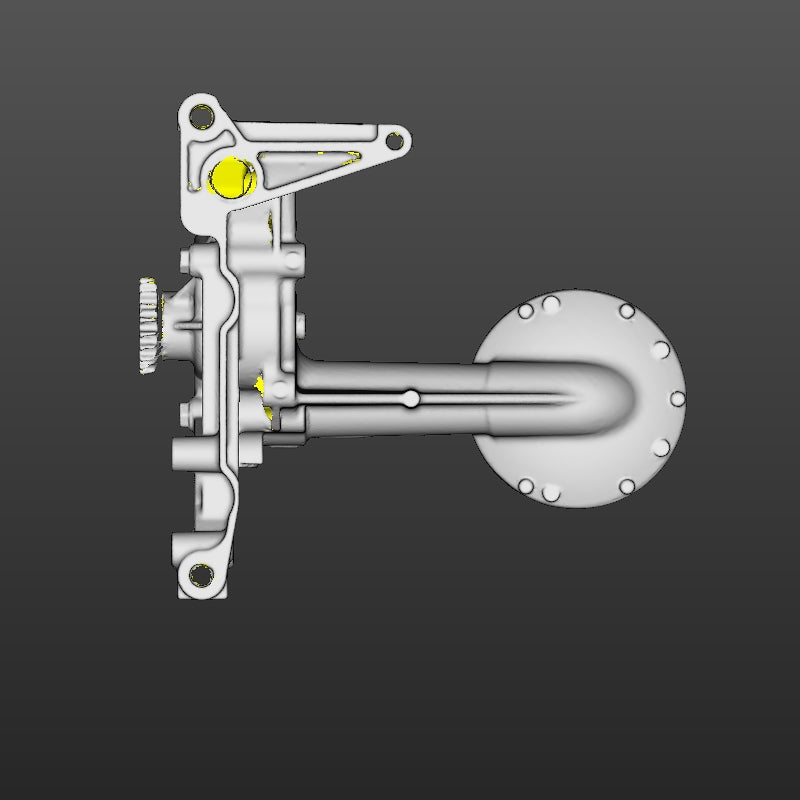

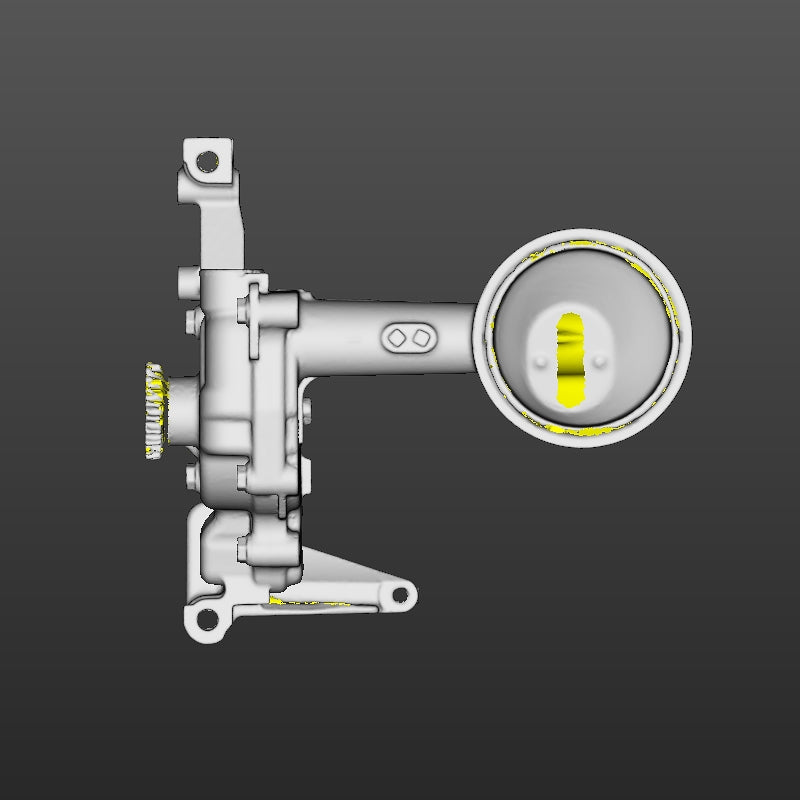

- 3D scan–based geometry of an original OEM Honda K-series  (K20,K24 Non-balance shafts) oil pump

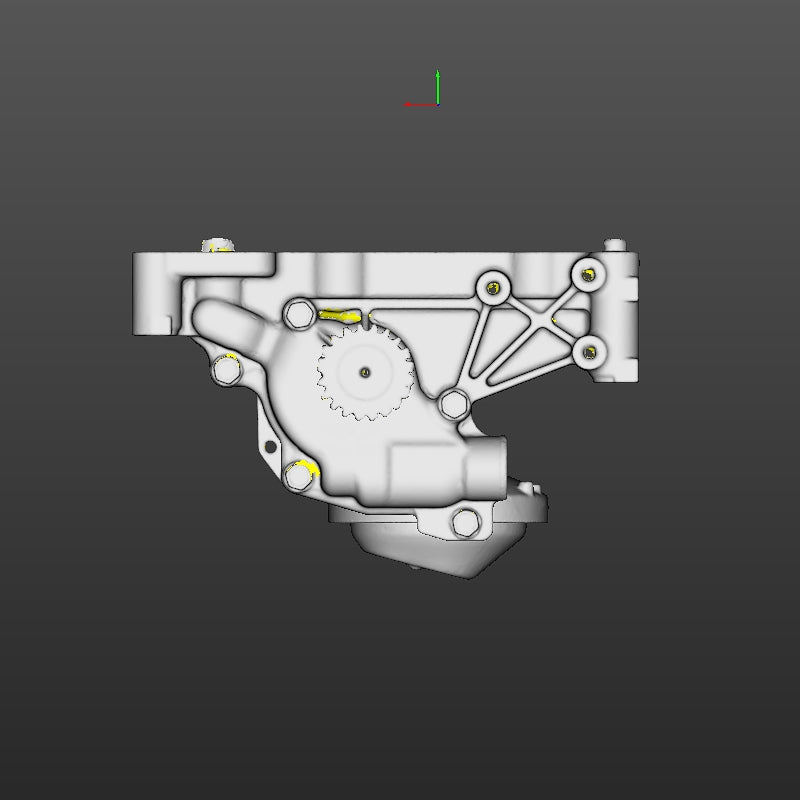

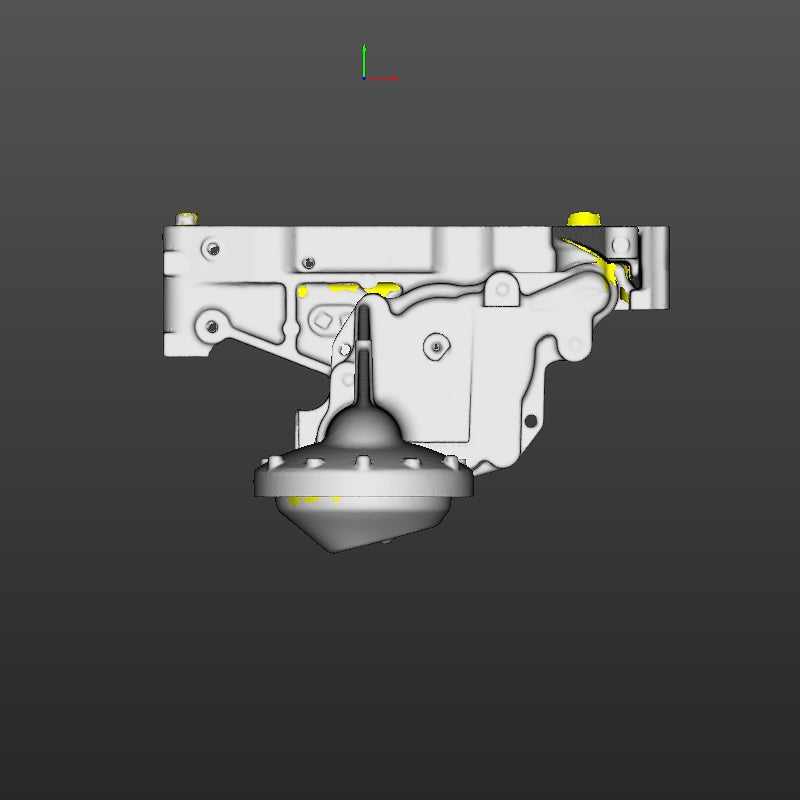

- The package includes both a complete assembled scan merged into a single mesh, as well as individual scans of each separate part. All scans are positioned relative to each other for convenient modeling.
- Cleaned and aligned model

Accuracy & Notes
- Scan accuracy: approximately ±0.06 mm
- Minor surface noise removed
- Model represents the part as-scanned
- This is scan data, not a redesigned CAD model
- File formats: STL

License & Usage Terms:
This 3D model is provided for personal and commercial use by the original purchaser only.
Resale, redistribution, sharing, sublicensing, or transferring this file (or any derivative of it) in digital form is strictly prohibited.
You may use this model for design, fabrication, and manufacturing purposes, but you may not sell, give away, or upload the digital files or modified versions of them.
