Mazda MX-5 Miata NB multi-part 3D scan assembly of real components

High-accuracy multi-part 3D scan assembly of real OEM Mazda MX-5 Miata NB components - created for engineers, fabricators, and enthusiasts who need accurate real-world geometry and true component relationships.

Ideal for:
- Reverse engineering
- Full vehicle component layout, spatial relationships
- Engine swaps, drivetrain integration, brake conversions
- Custom fabrication and fitment checks

What’s Included

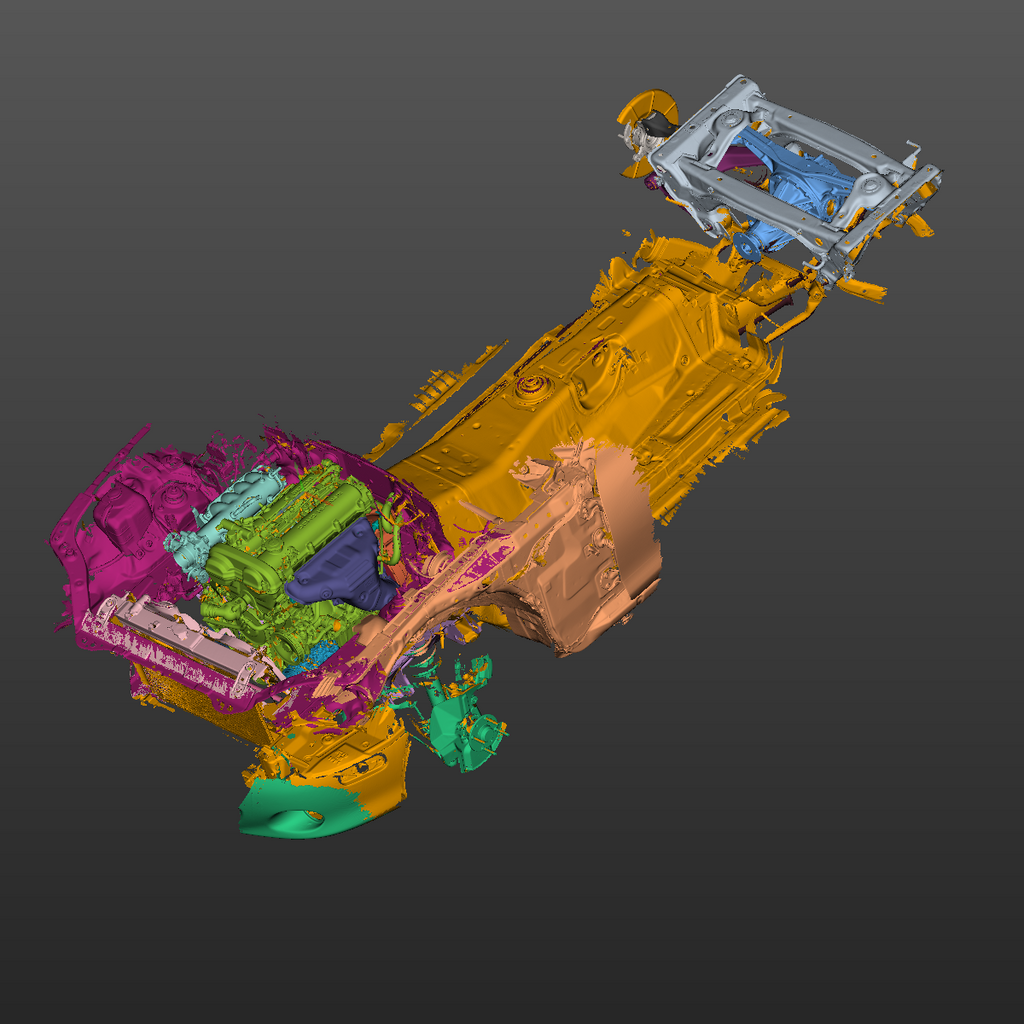

All parts aligned in a shared coordinate system to preserve real-world spatial relationships between components

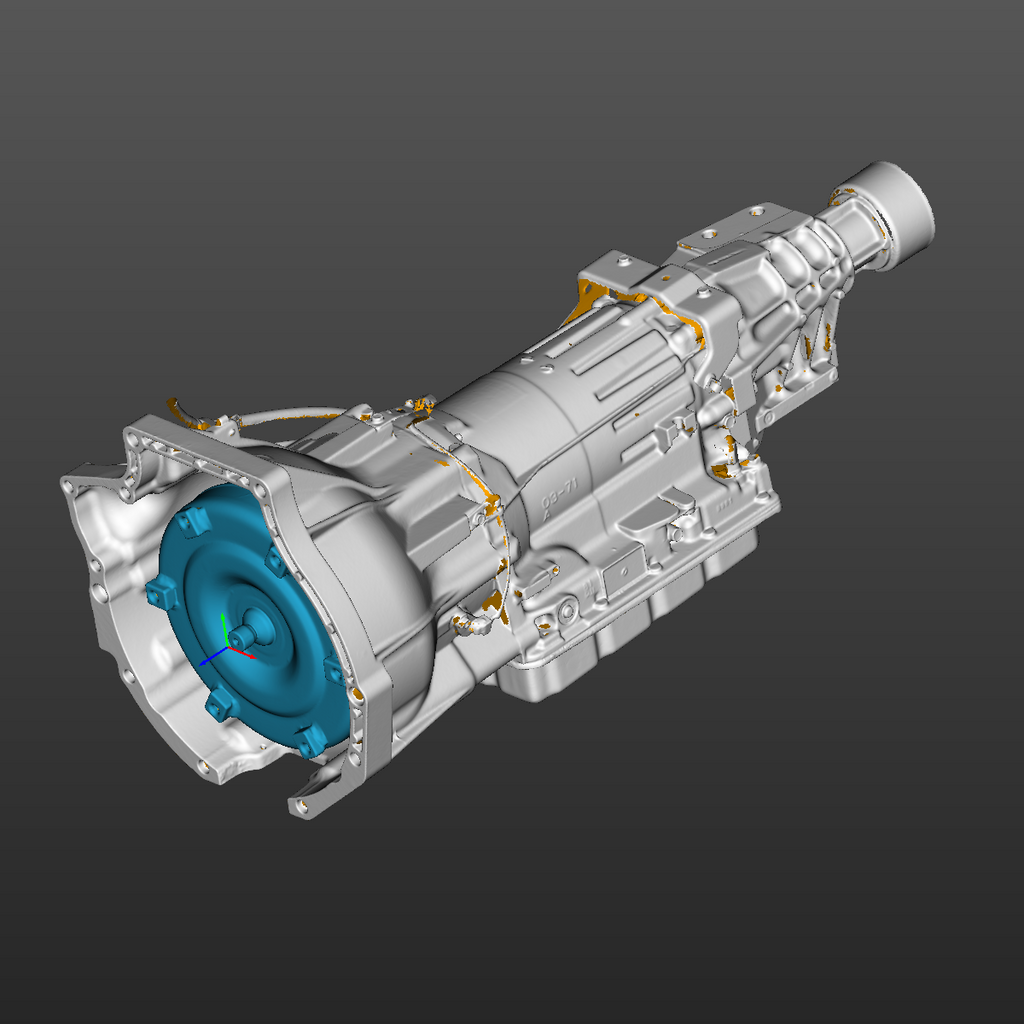

- 3D scan–based geometry of an original OEM Mazda MX-5 Miata NB automatic transmission

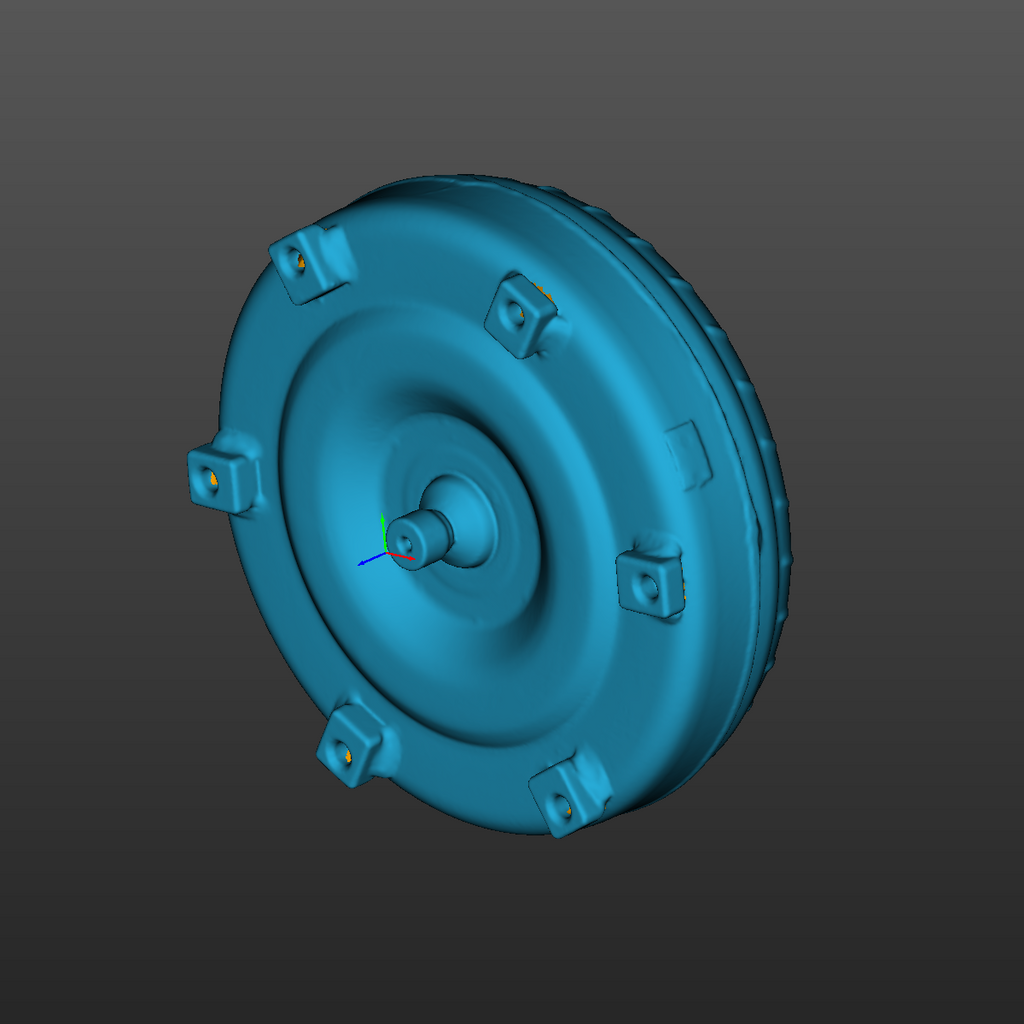

- 3D scan–based geometry of an original OEM Mazda MX-5 Miata NB torque converter

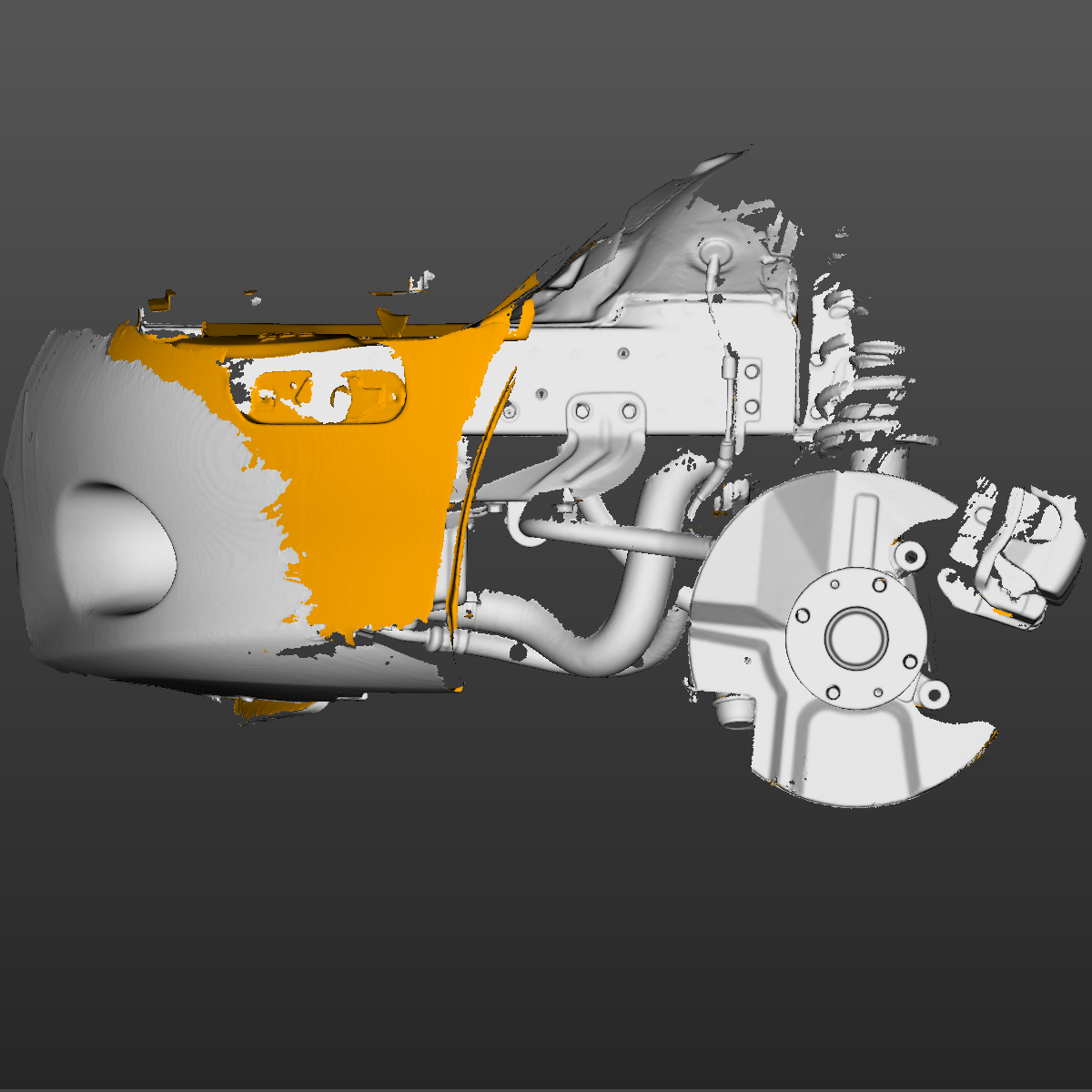

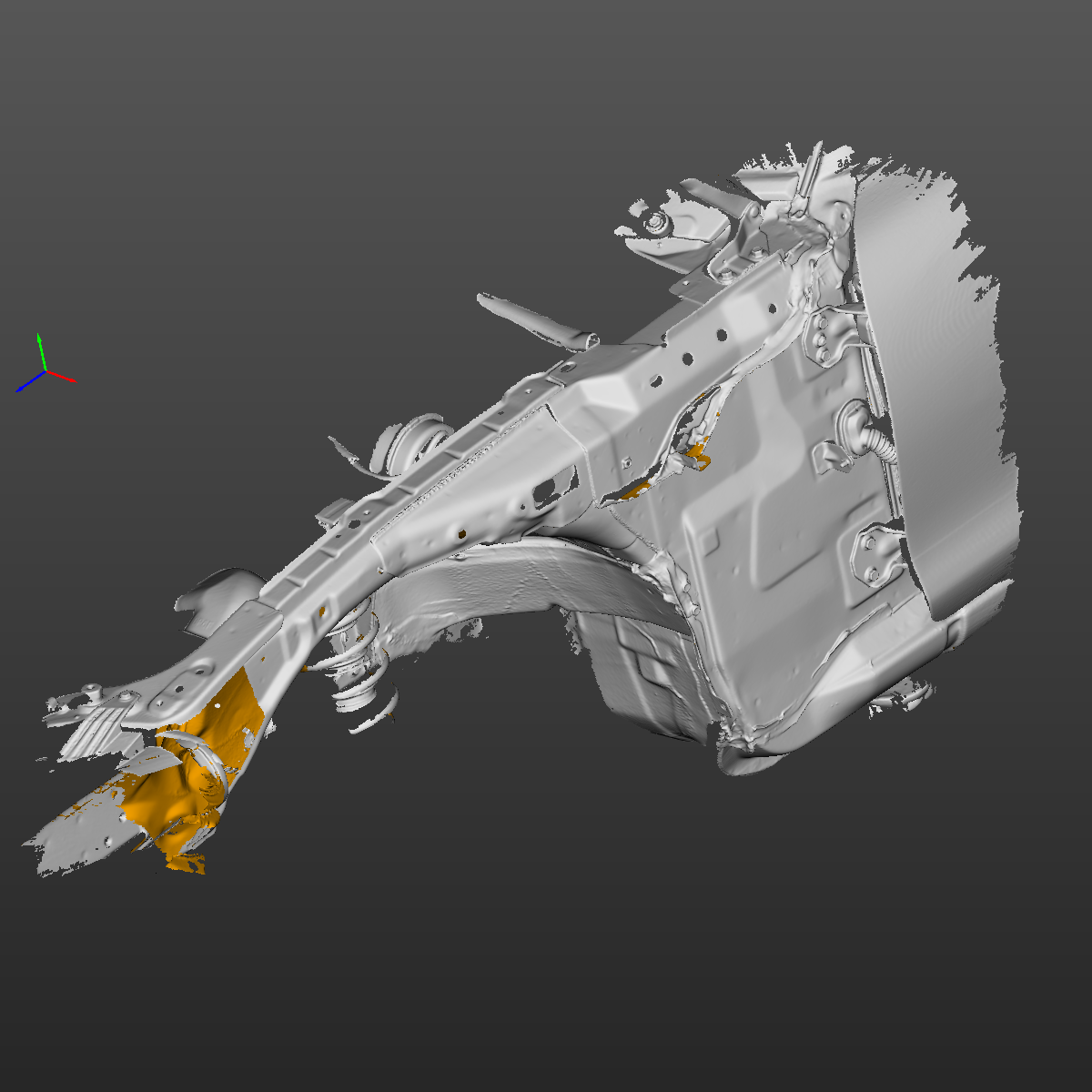

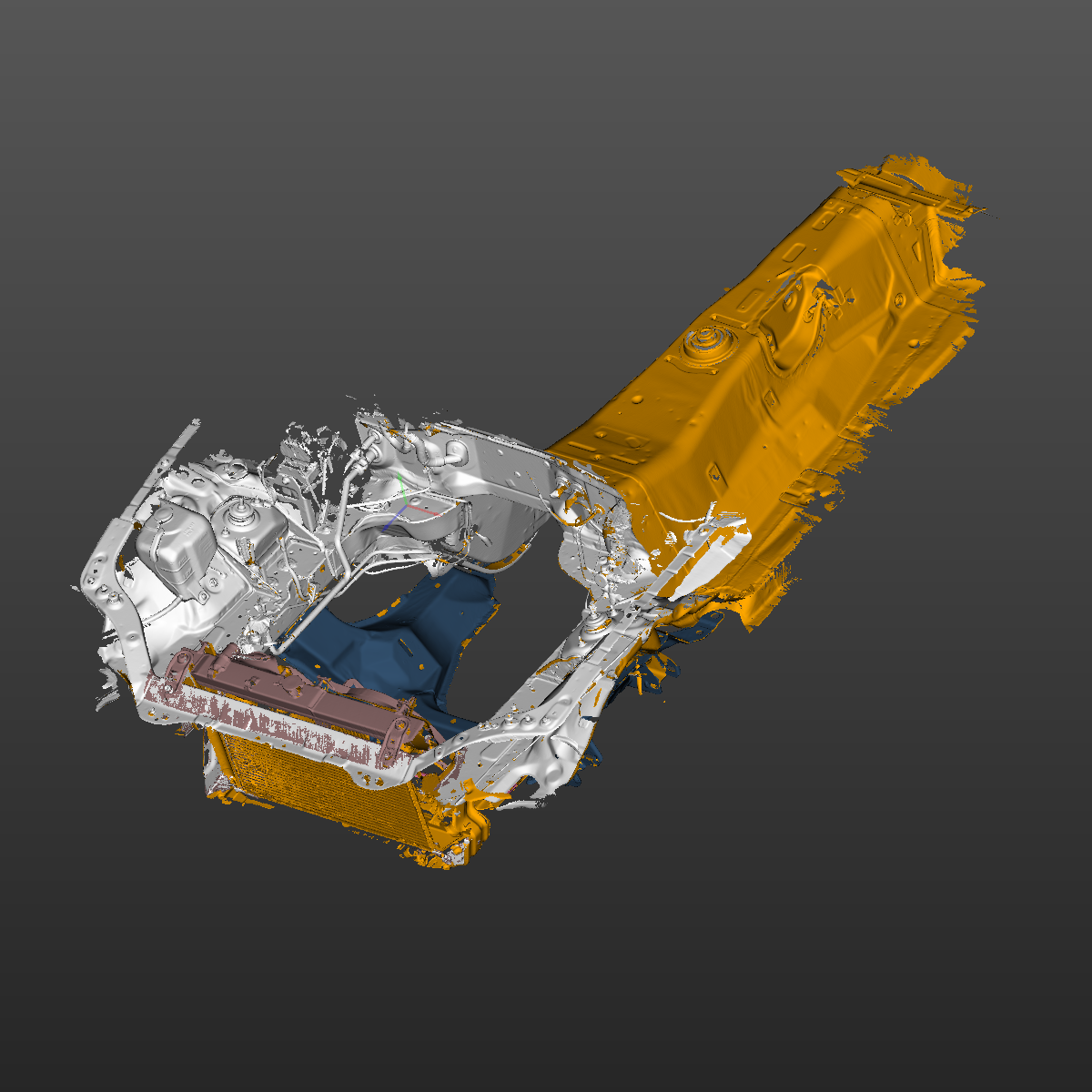

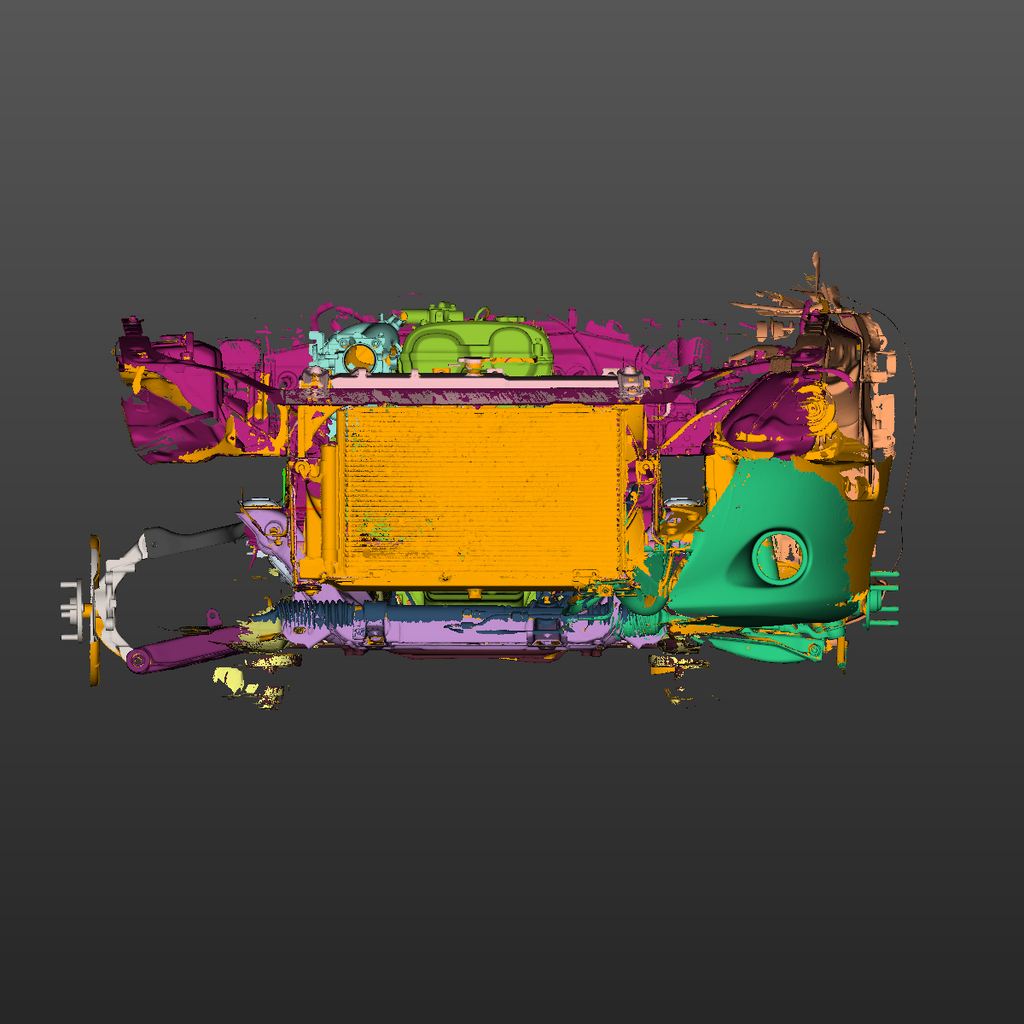

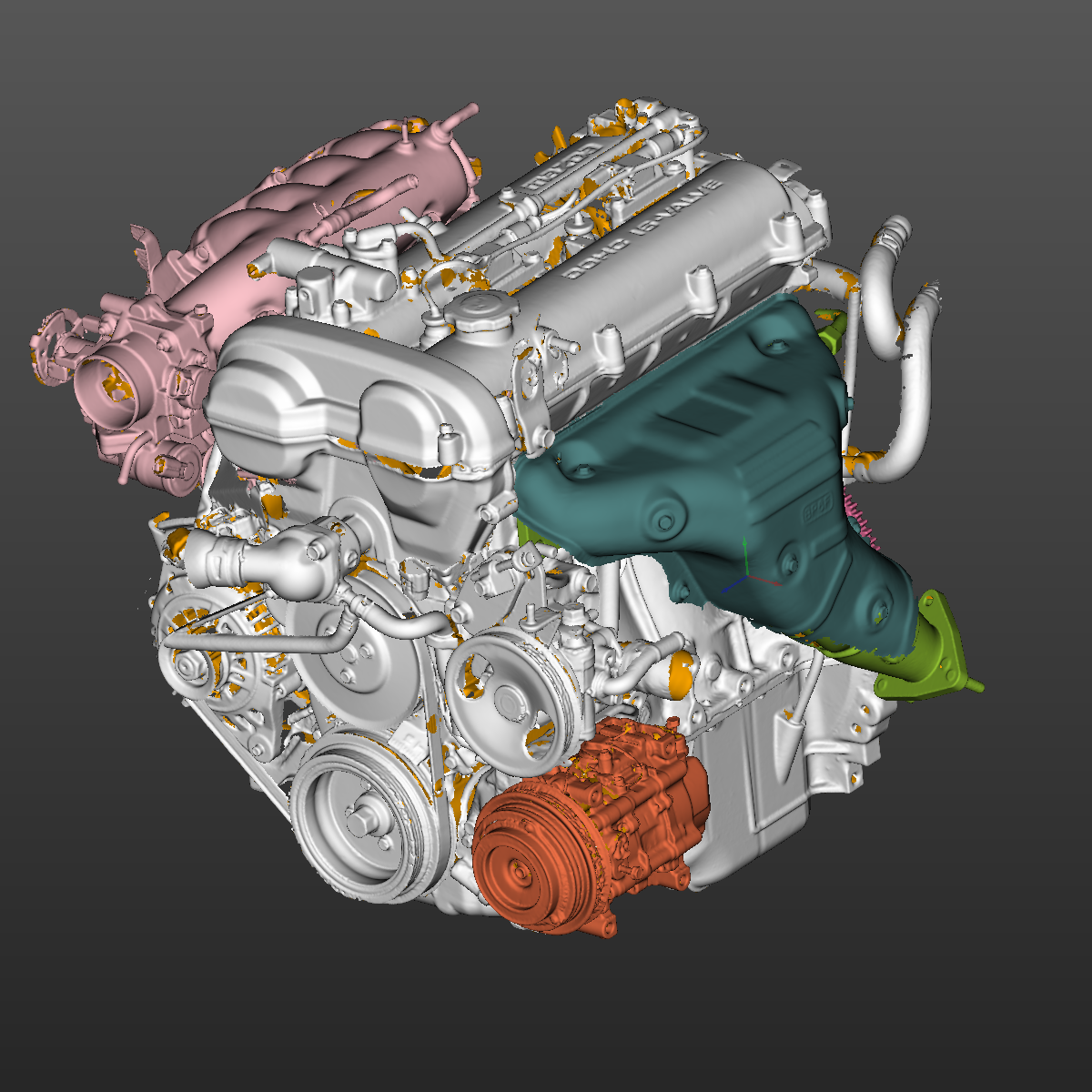

- 3D scan–based geometry of an original OEM Mazda MX-5 Miata NB engine bay

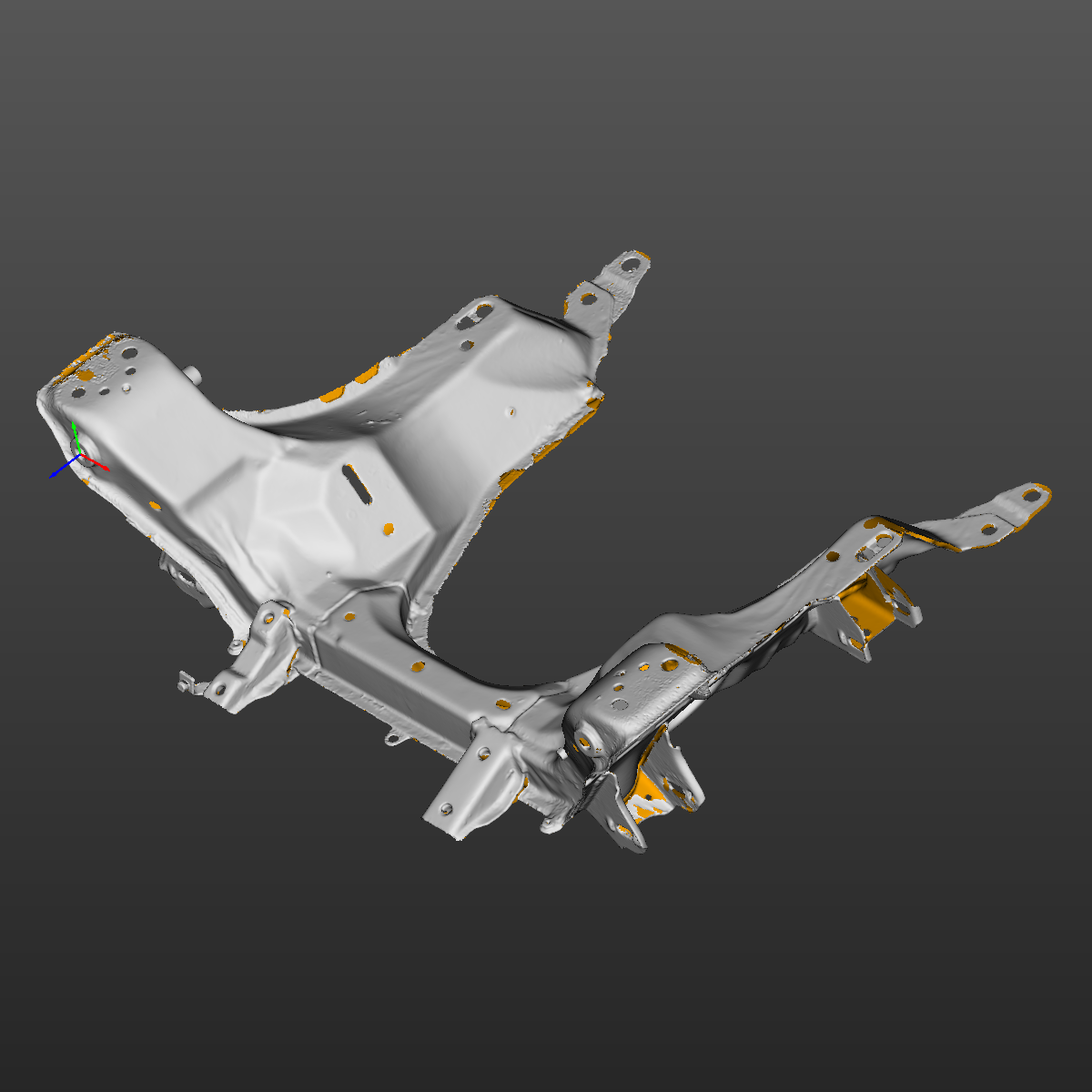

- 3D scan–based geometry of an original OEM Mazda MX-5 Miata NB front subframe
- 3D scan–based geometry of an original OEM Mazda MX-5 Miata NB front LH fender mounting area

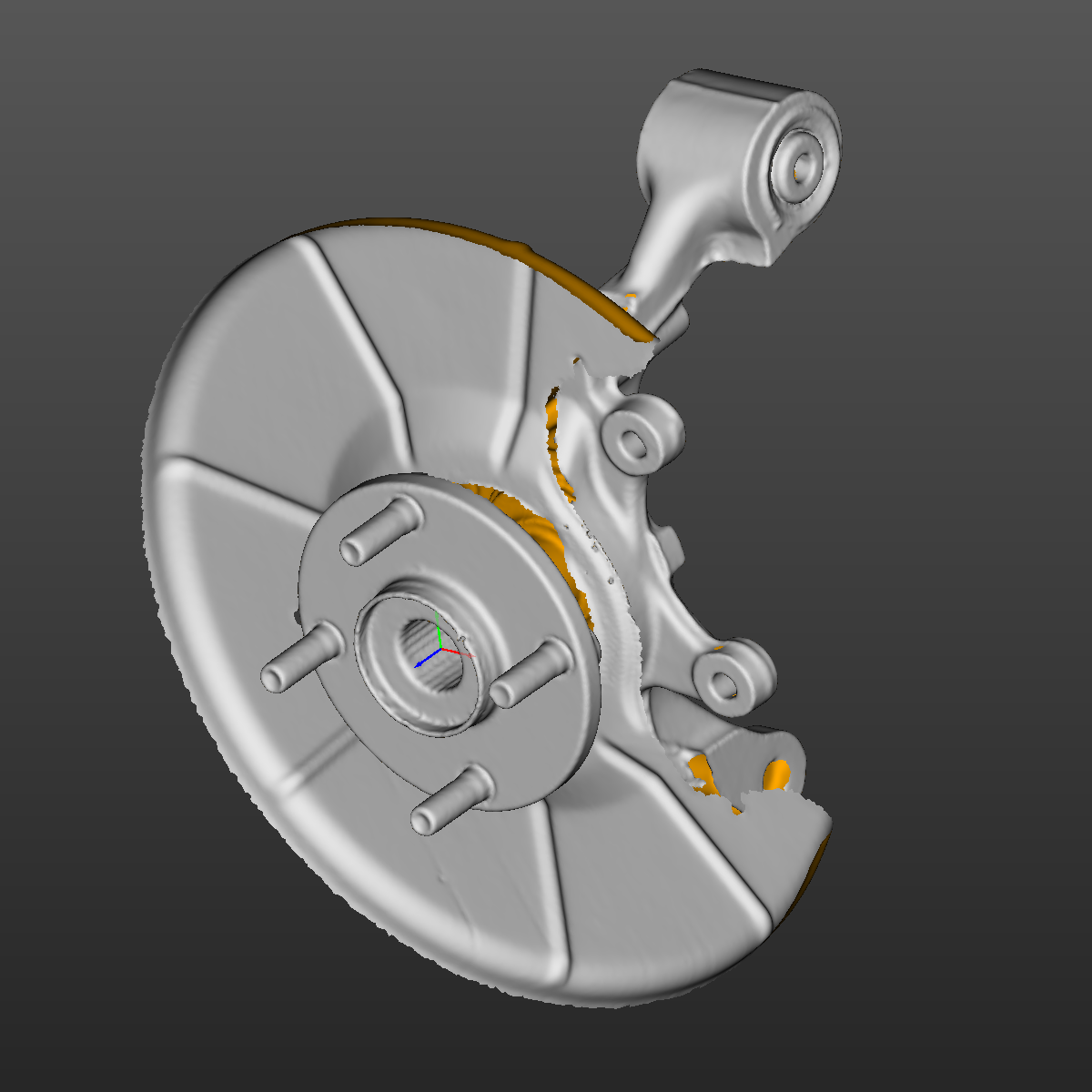

- 3D scan–based geometry of an original OEM Mazda MX-5 Miata NB front LH knuckle

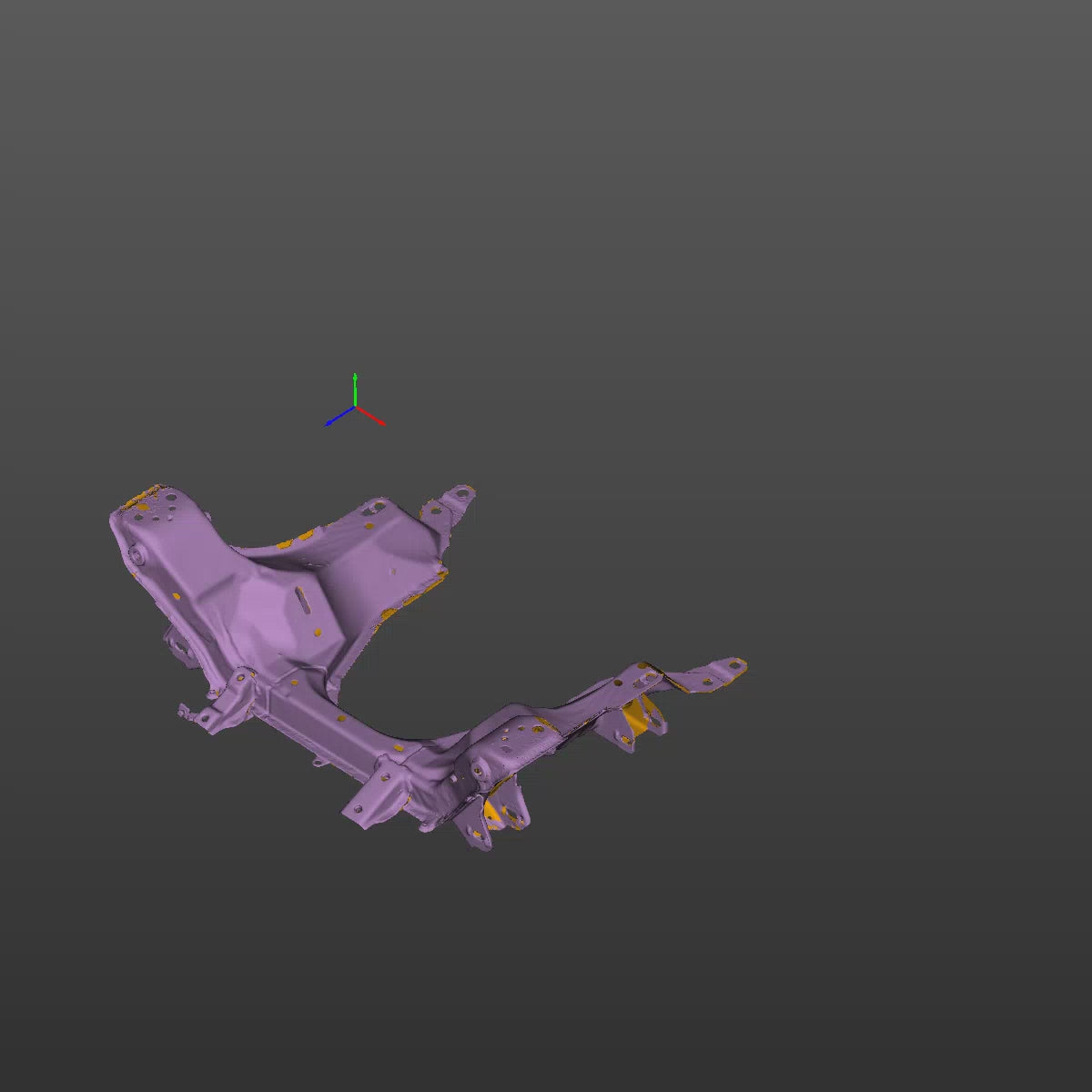

- 3D scan–based geometry of an original OEM Mazda MX-5 Miata NB front subframe

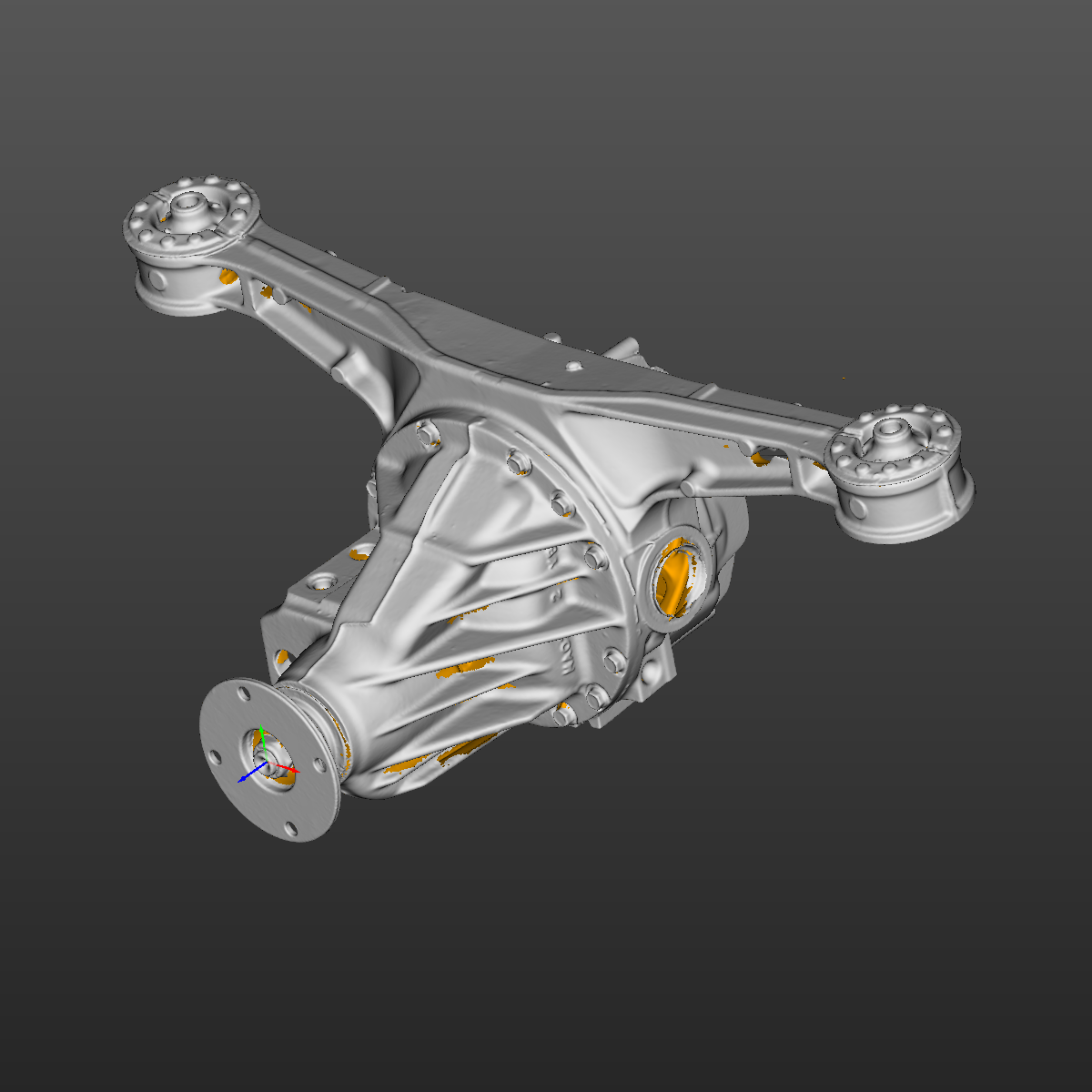

- 3D scan–based geometry of an original OEM Mazda MX-5 Miata NB rear differential
- 3D scan–based geometry of an original OEM Mazda MX-5 Miata NB rear RH knuckle

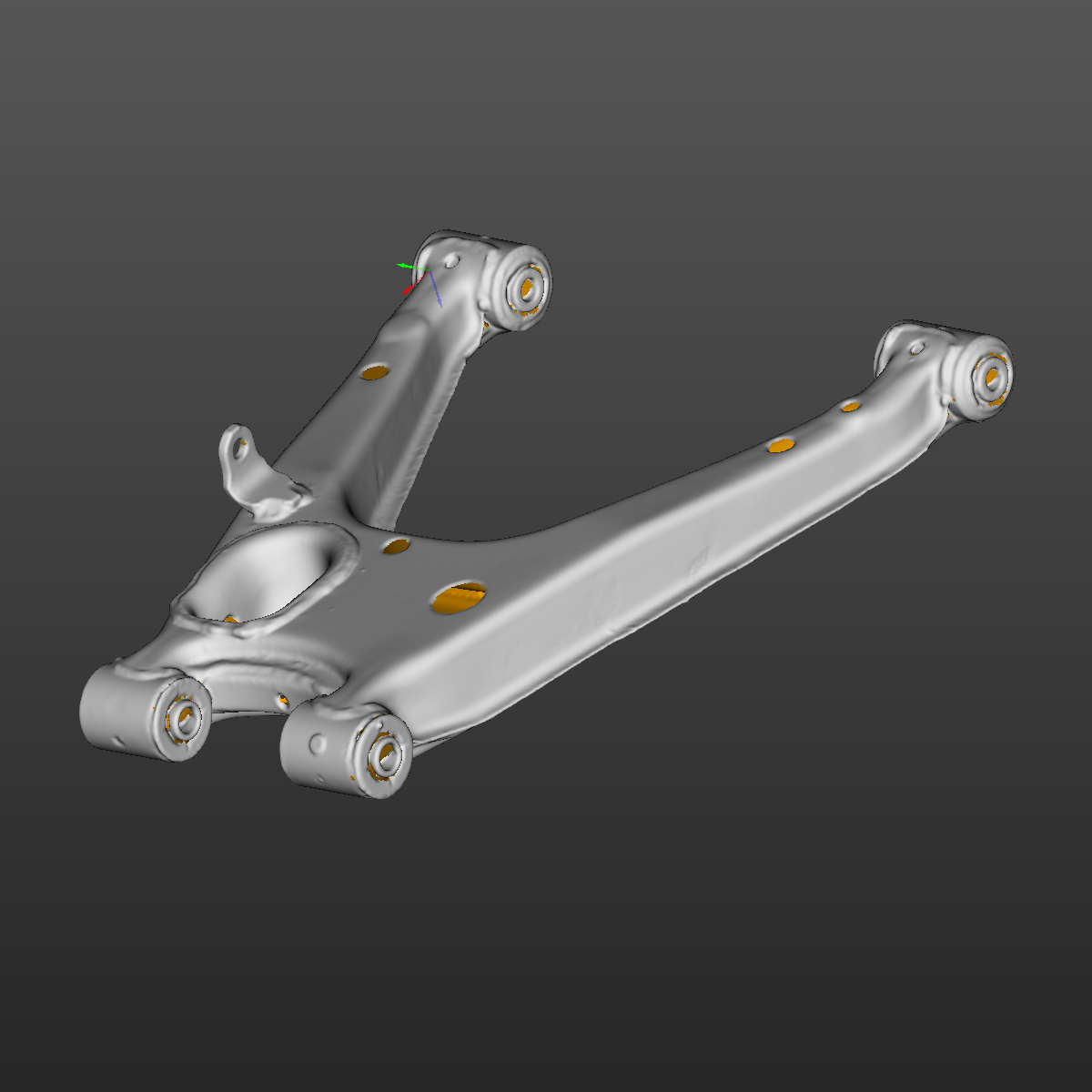

- 3D scan–based geometry of an original OEM Mazda MX-5 Miata NB rear RH lower control arm

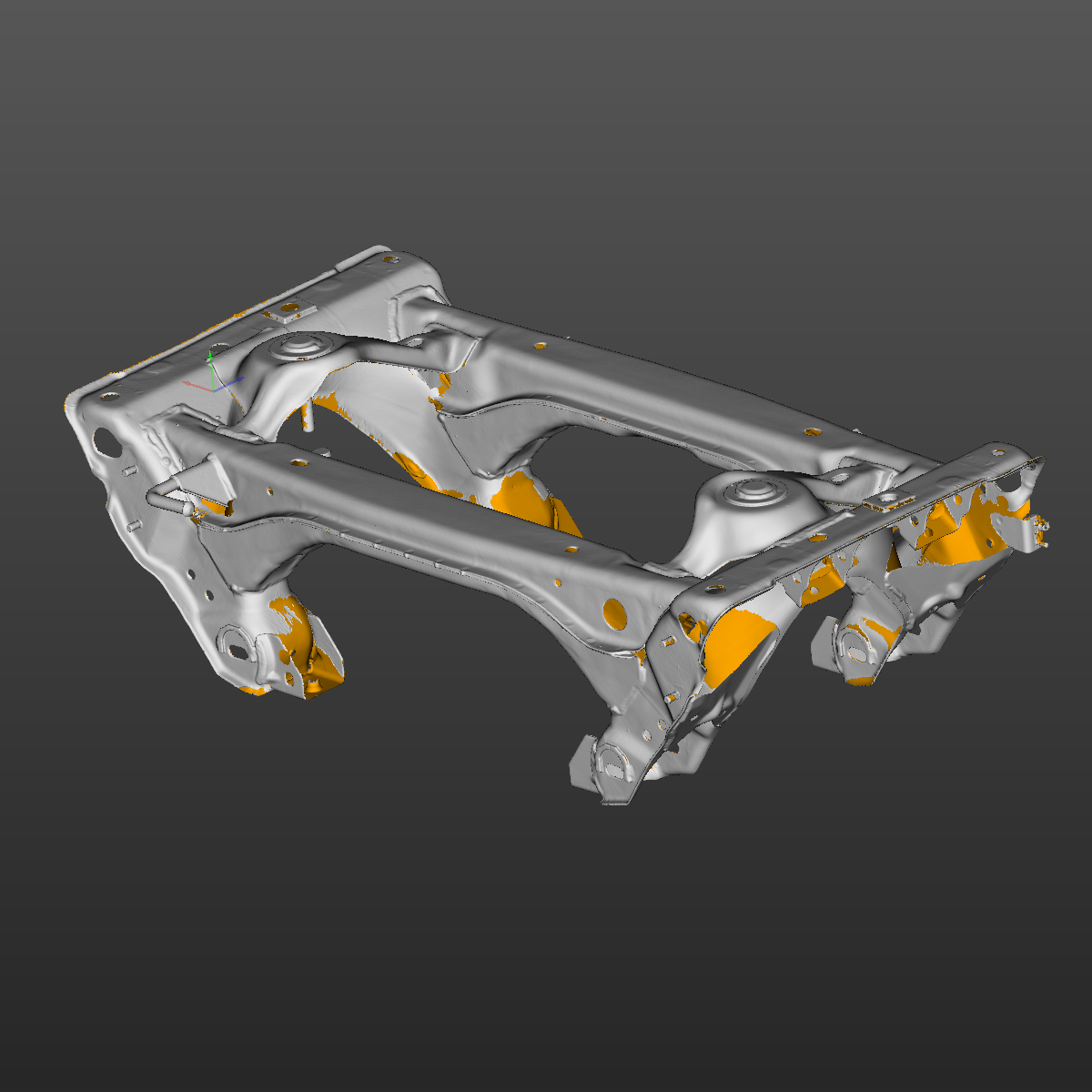

- 3D scan–based geometry of an original OEM Mazda MX-5 Miata NB rear subframe

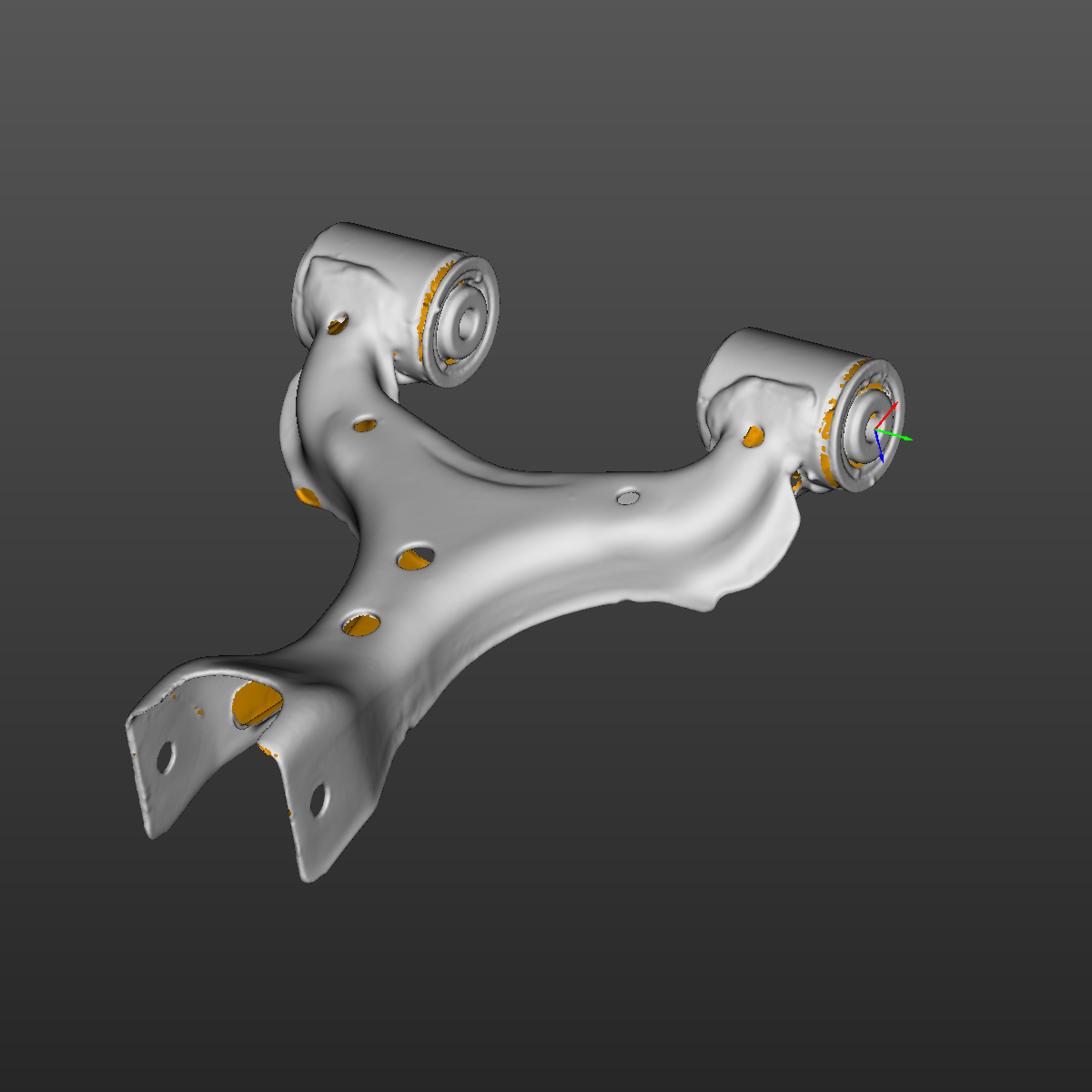

- 3D scan–based geometry of an original OEM Mazda MX-5 Miata NB Rear upper control arm

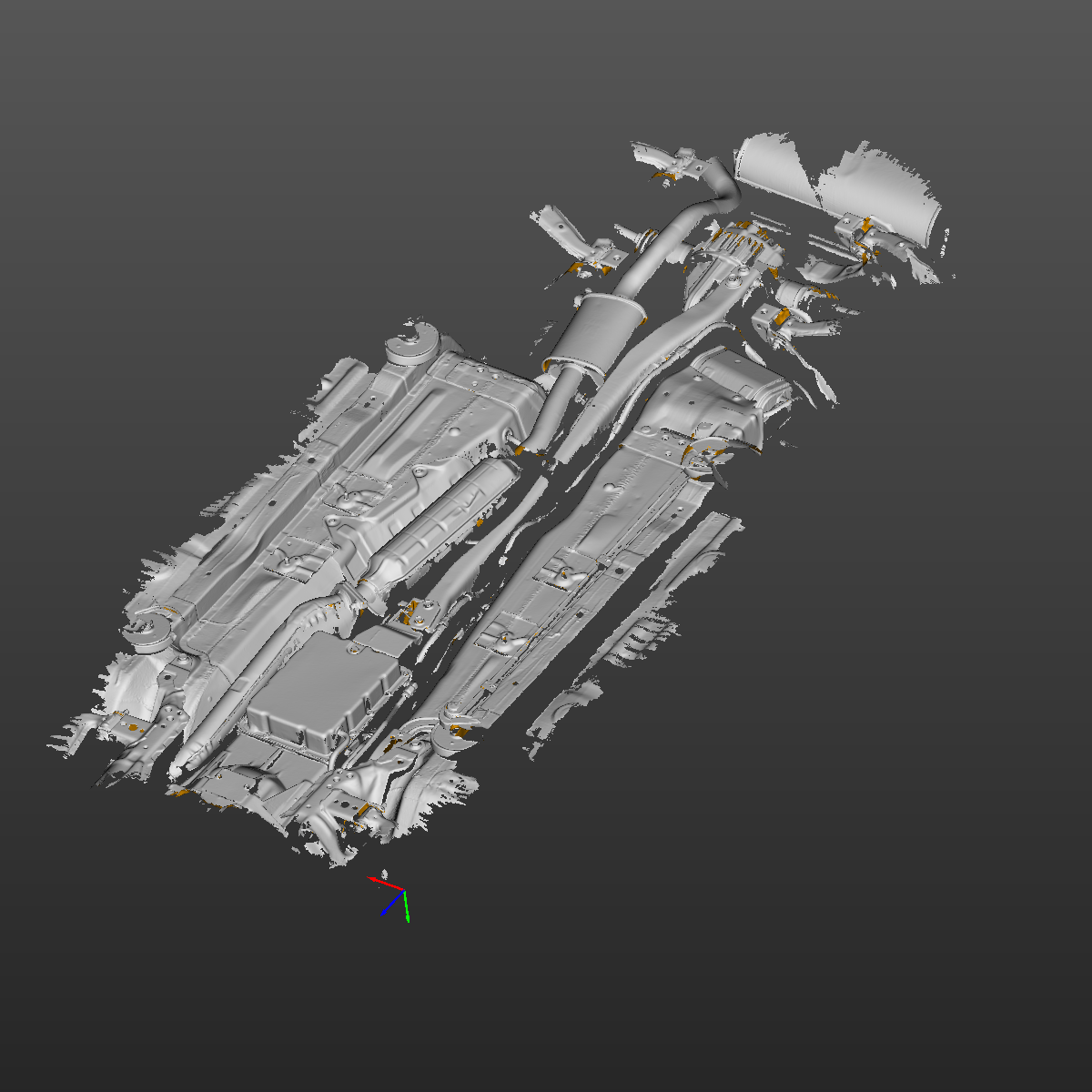

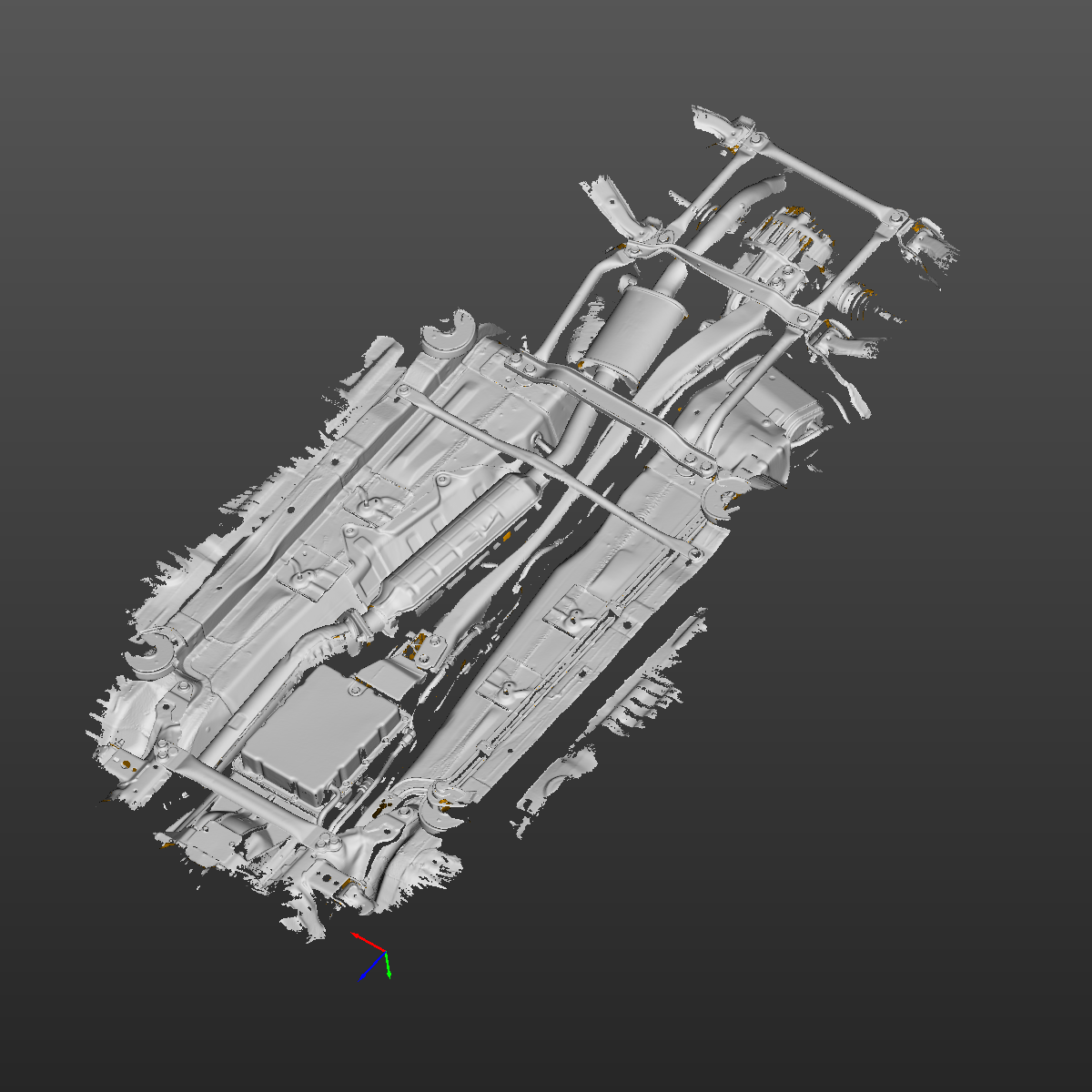

- 3D scan–based geometry of an original OEM Mazda MX-5 Miata NB underbody without braces
- 3D scan–based geometry of an original OEM Mazda MX-5 Miata NB underbody with braces

Additional centered versions (Local Coordinates) - individual components and sub-assemblies are also provided as separate files, each aligned to its own local coordinate system for easier editing, modification, and manufacturing workflows

Cleaned and aligned models Accuracy & Notes
- Scan accuracy: approximately ±0.06 mm
- Minor surface noise removed
- Model represents the part as-scanned
- This is scan data, not a redesigned CAD model
- File formats: STL

License & Usage Terms:
This 3D model is provided for personal and commercial use by the original purchaser only.
Resale, redistribution, sharing, sublicensing, or transferring this file (or any derivative of it) in digital form is strictly prohibited.
You may use this model for design, fabrication, and manufacturing purposes, but you may not sell, give away, or upload the digital files or modified versions of them.
