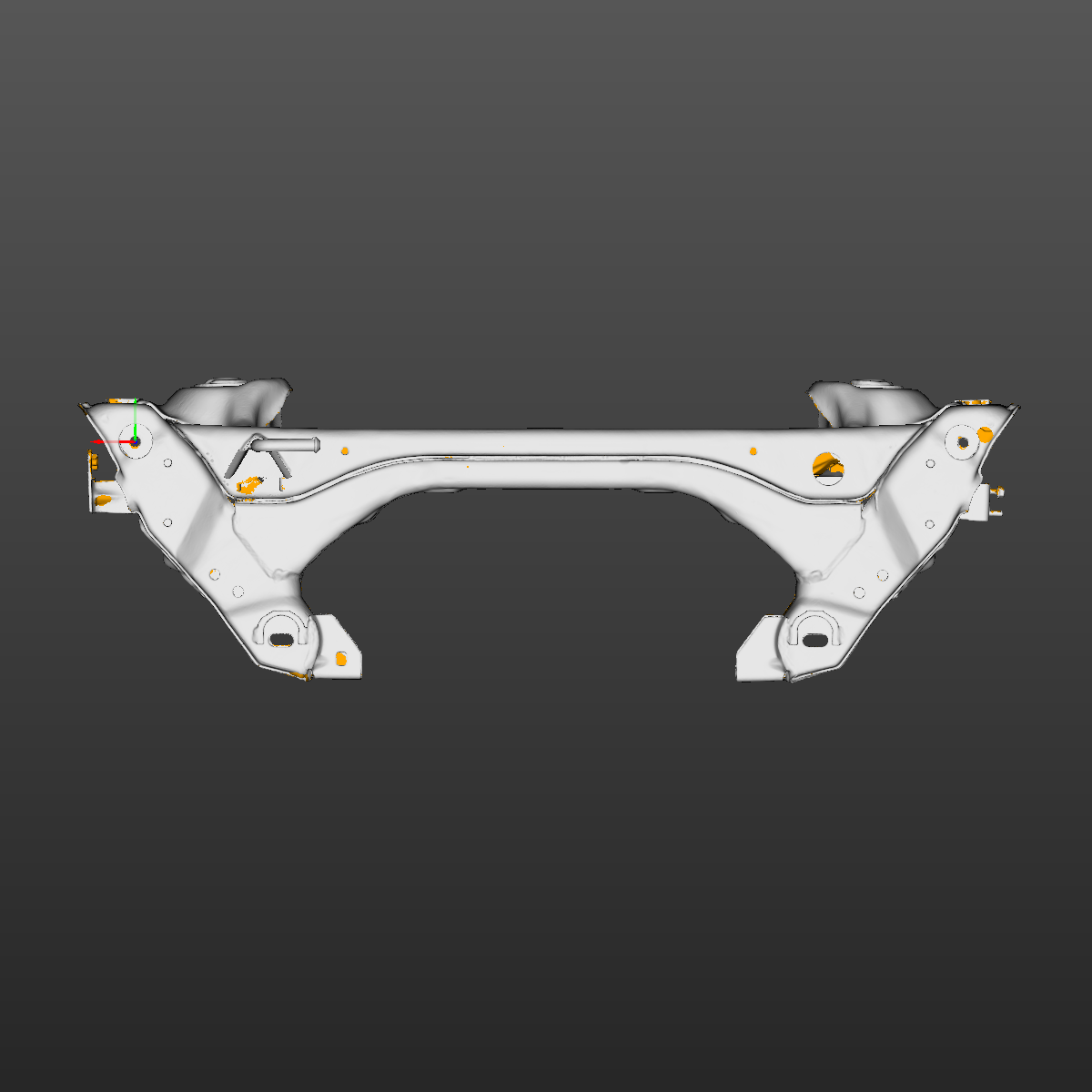

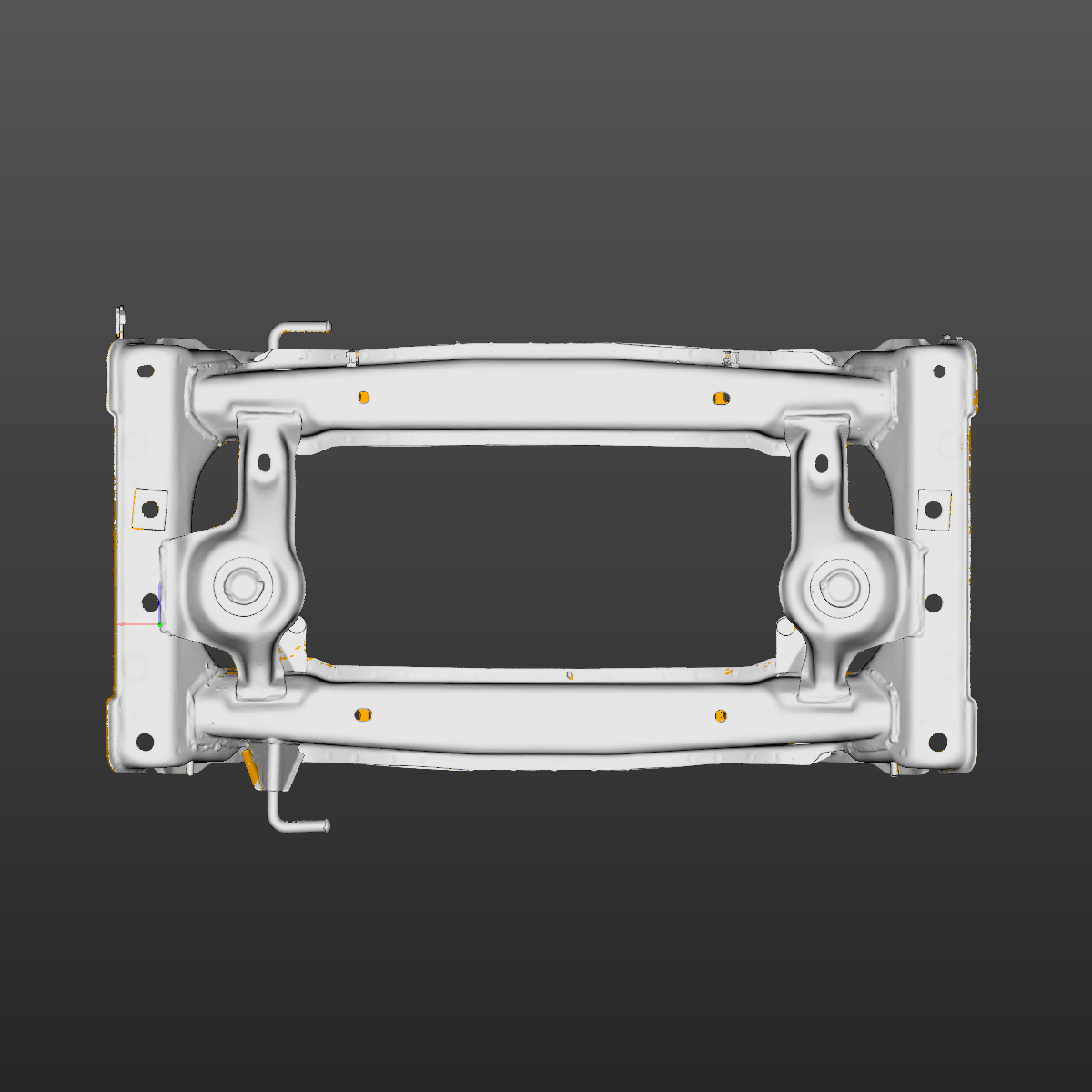

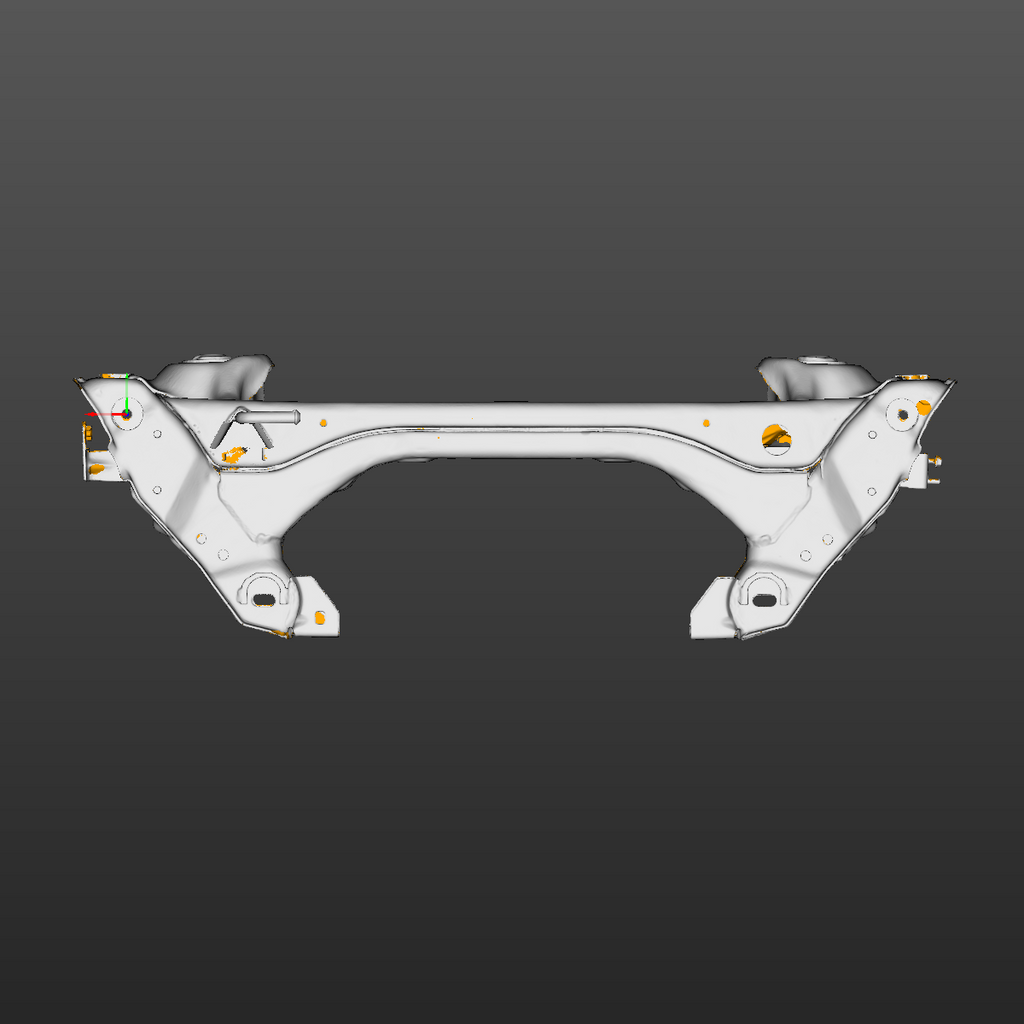

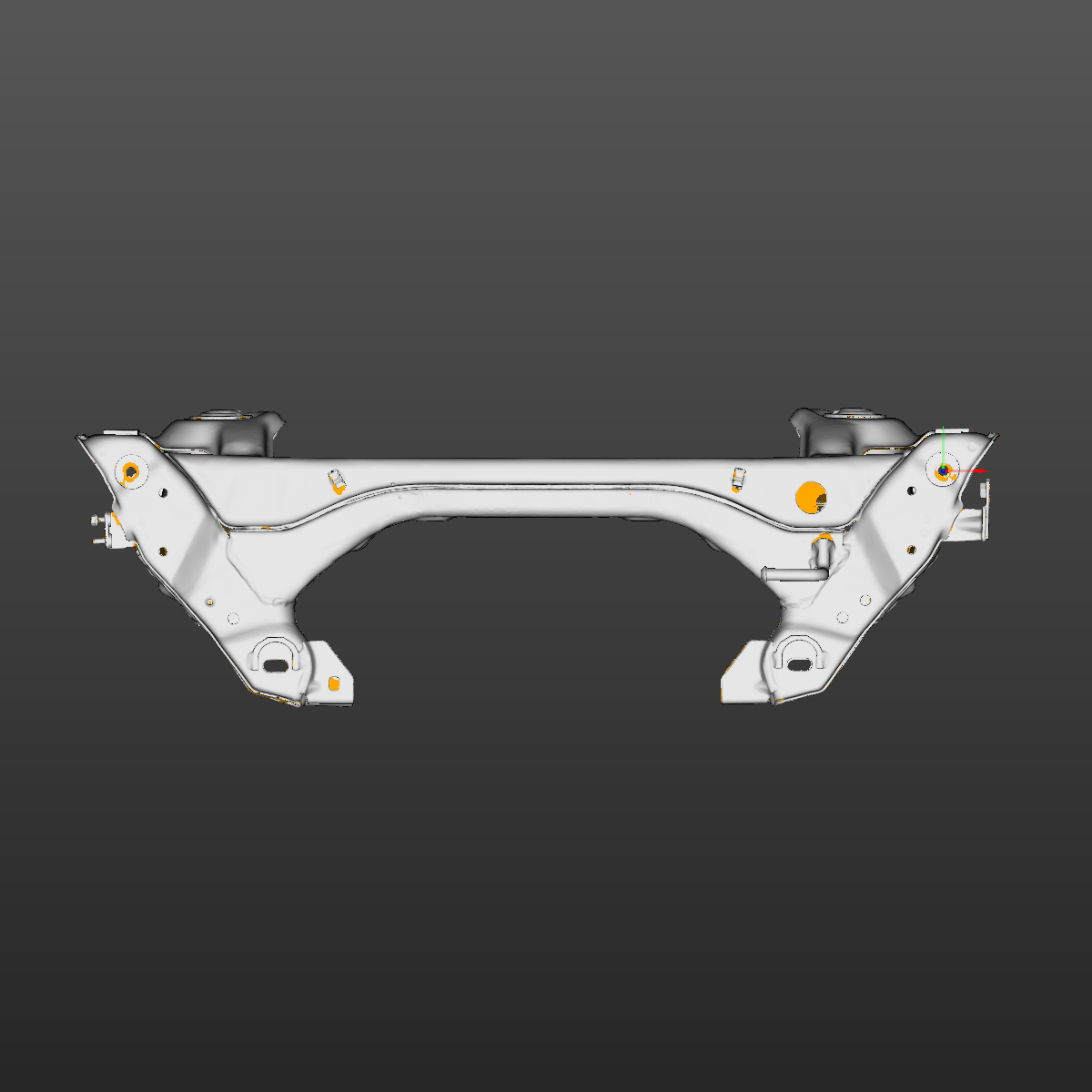

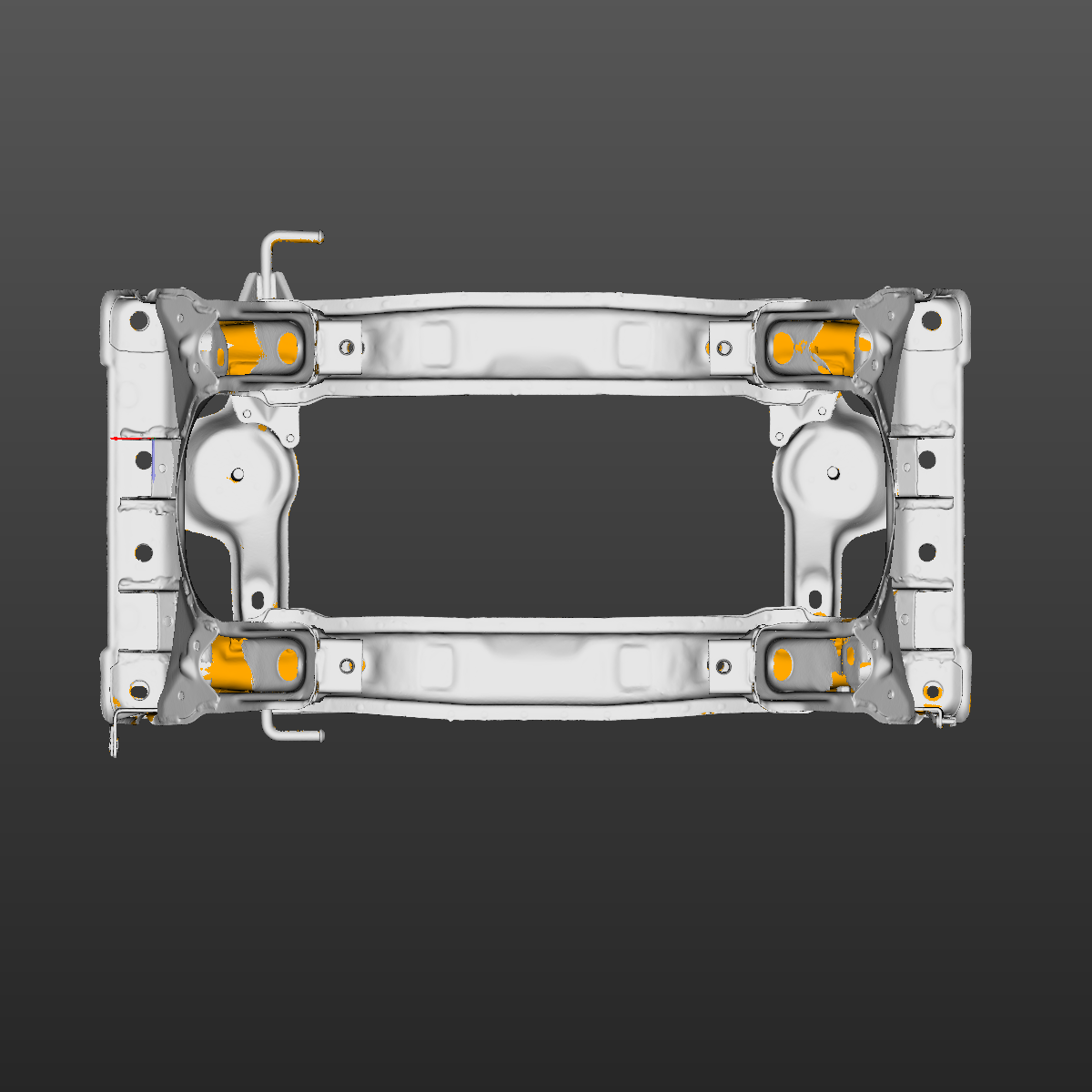

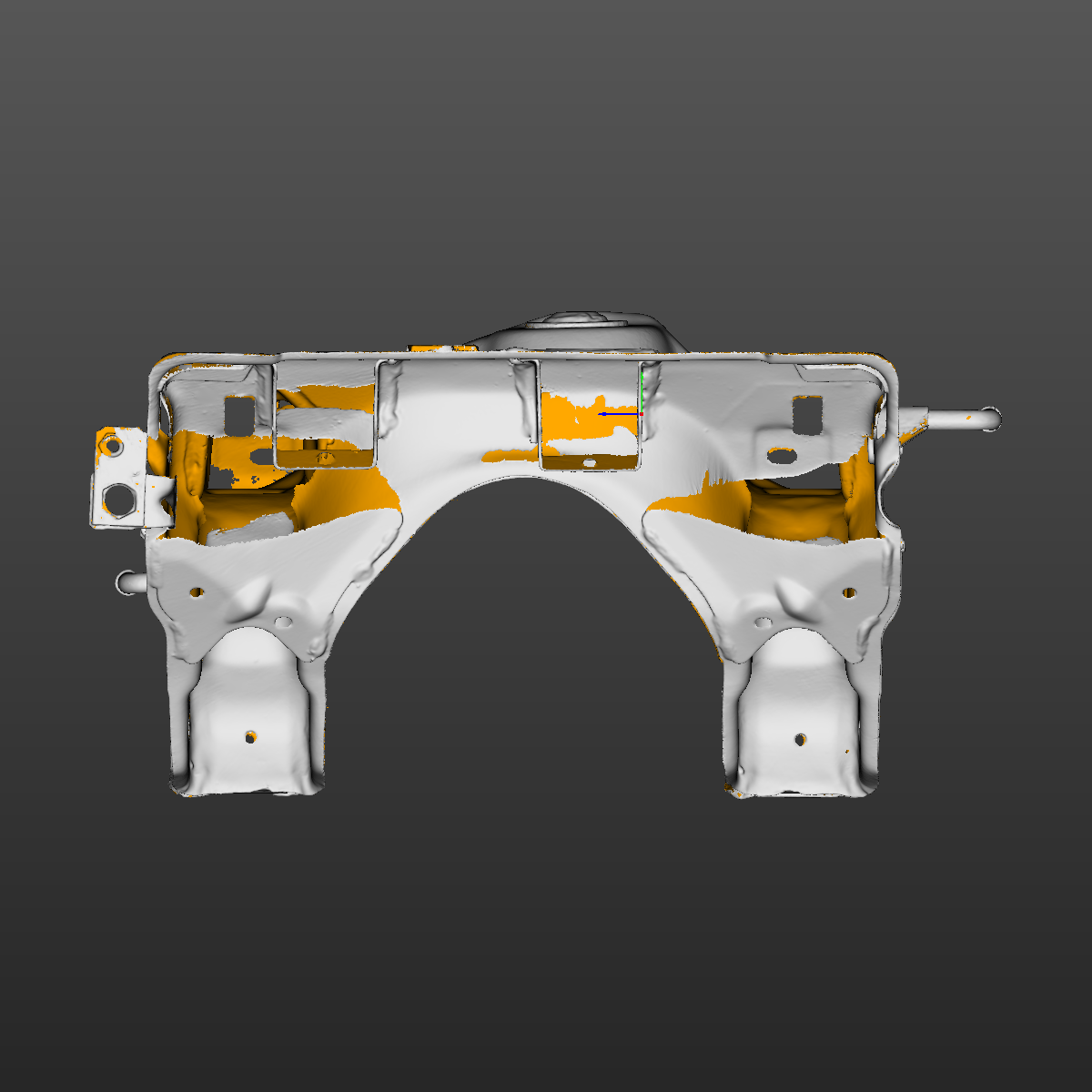

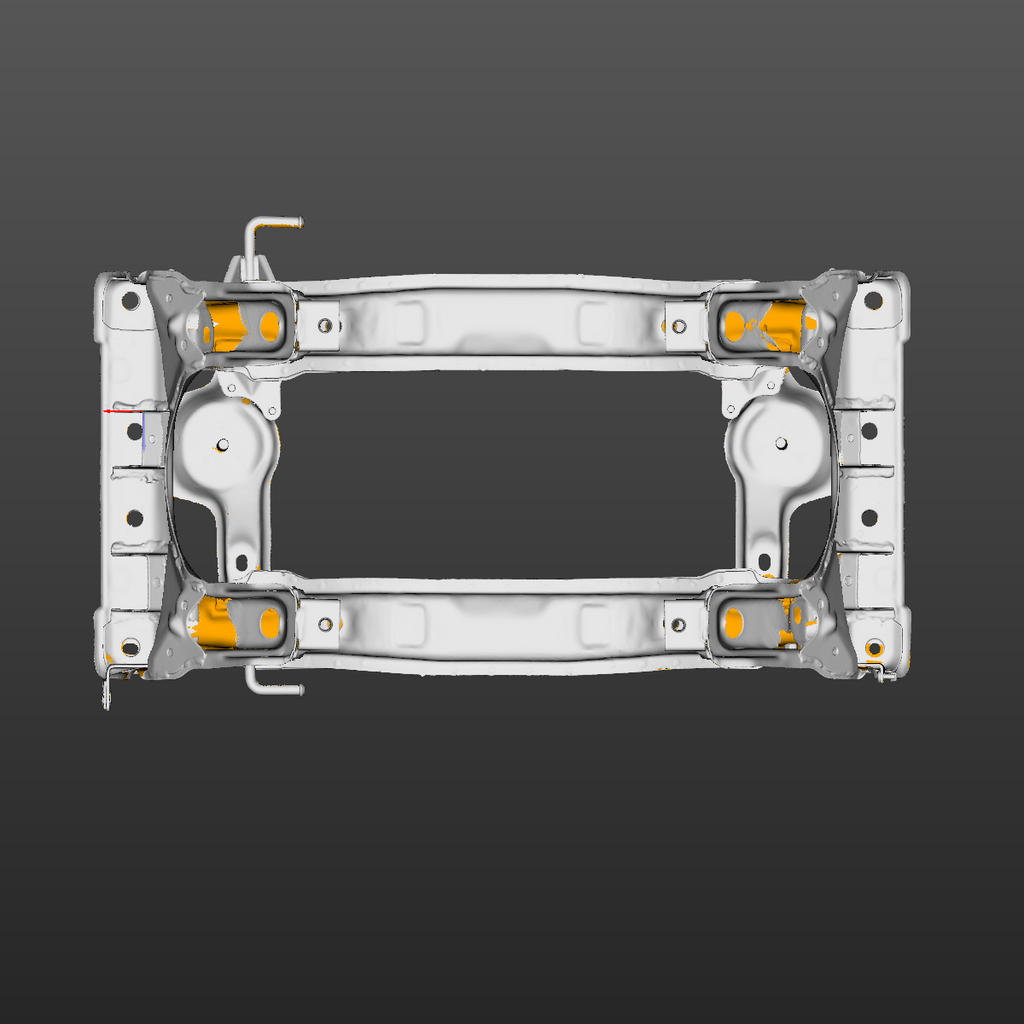

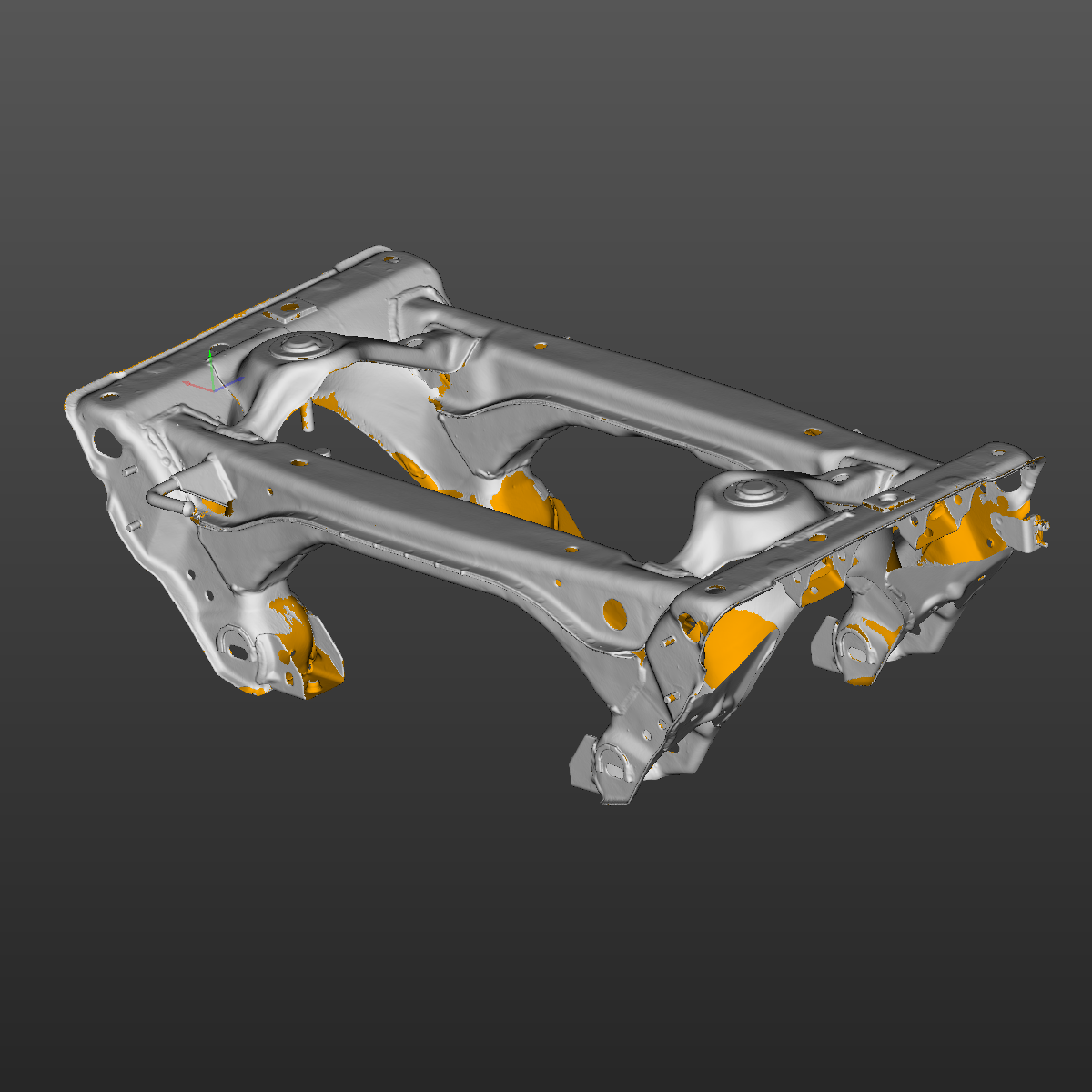

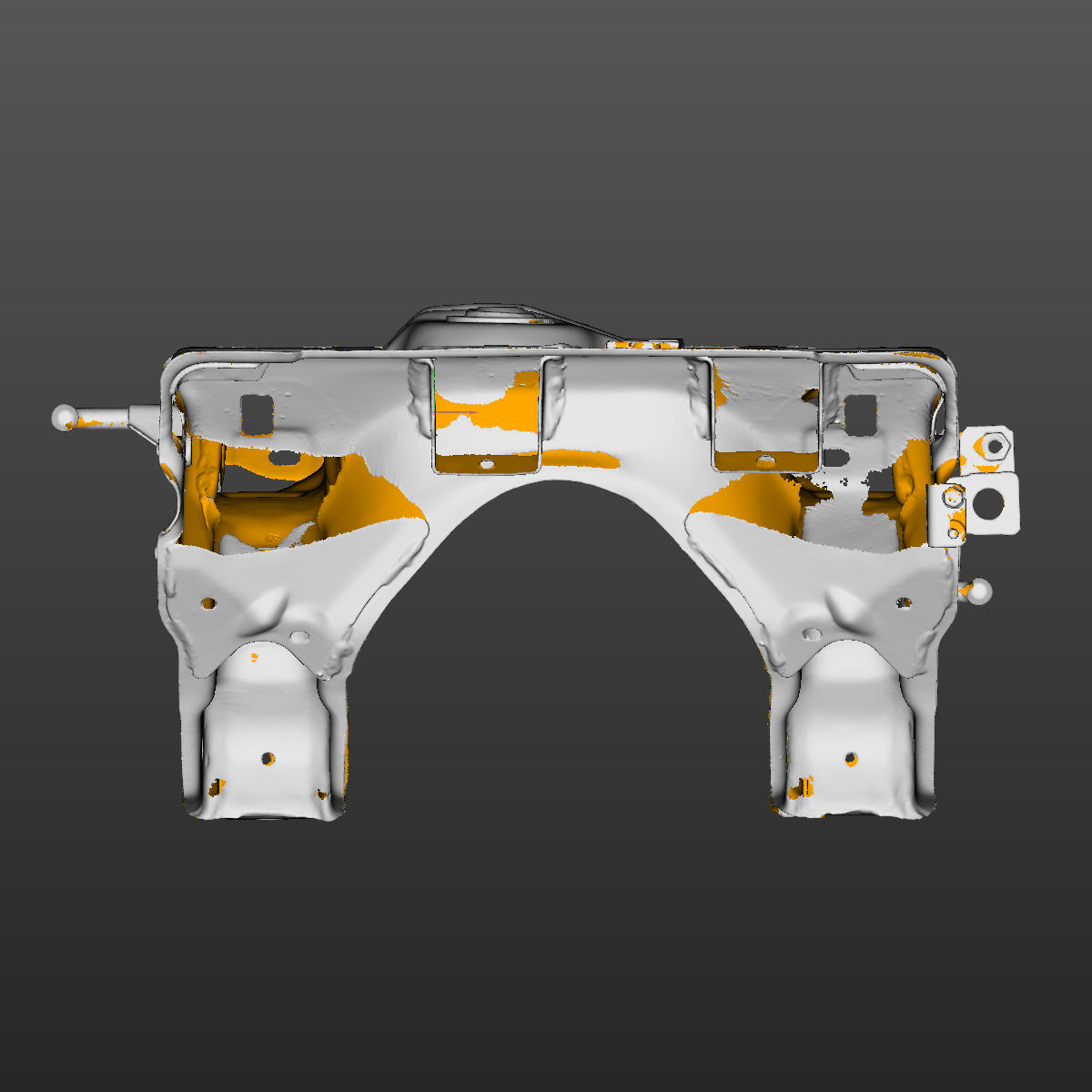

Mazda MX-5 Miata NB rear subframe 3D Scan STL

High-accuracy 3D scan of a real OEM Mazda MX-5 Miata NB rear subframe - created for engineers, fabricators, and enthusiasts who need accurate real-world geometry.

Ideal for:
- Reverse engineering
- Suspension mounting and geometry design
- Custom fabrication and fitment checks

What’s Included

- 3D scan–based geometry of an original OEM Mazda MX-5 Miata NB rear subframe

- This model is provided in two versions:
 1) Vehicle-Aligned Version - all components are positioned exactly as on the original car and merged into a complete assembly, preserving real-world location and orientation. This version can be used together with other components sold in our store to reconstruct accurate spatial relationships between parts.
 2) Centered Version (Local Coordinates) – components are provided either as individual parts or grouped into logical sub-assemblies. Each part or sub-assembly is isolated and aligned to its own coordinate system, with correct relative positioning between parts preserved within each sub-assembly for easier editing, modification, and manufacturing workflows.

Cleaned and aligned modelsAccuracy & Notes
- Scan accuracy: approximately ±0.06 mm
- Minor surface noise removed
- Model represents the part as-scanned
- This is scan data, not a redesigned CAD model
- File formats: STL

License & Usage Terms:
This 3D model is provided for personal and commercial use by the original purchaser only.
Resale, redistribution, sharing, sublicensing, or transferring this file (or any derivative of it) in digital form is strictly prohibited.
You may use this model for design, fabrication, and manufacturing purposes, but you may not sell, give away, or upload the digital files or modified versions of them.
